JACOUSTICS::getSuperEvt Struct Reference

Auxiliary data structure to convert model to super event. More...

#include <JSuperEvtToolkit.hh>

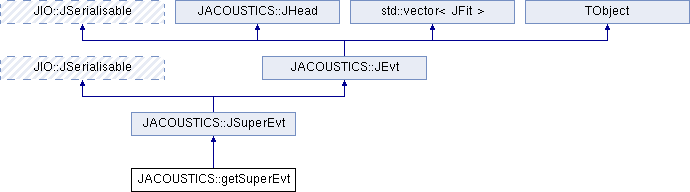

Inheritance diagram for JACOUSTICS::getSuperEvt:

Public Types
typedef std::vector< tx_t >	tx_type
typedef std::vector< rx_t >	rx_type

Public Member Functions
template<class T >
	getSuperEvt (const JHead &header, const JModel &model, T begin, T end)
	Constructor.
virtual JReader &	read (JReader &in) override
	Read from input.
virtual JWriter &	write (JWriter &out) const override
	Write to output.
	ClassDefOverride (JSuperEvt, 1)
	ClassDefOverride (JEvt, 9)
	ClassDef (JHead, 7)

Public Attributes
tx_type	tx
rx_type	rx
int	detid
	detector identifier
double	UNIXTimeStart
	start time
double	UNIXTimeStop
	stop time
int	nhit
	number of hits
int	nfit
	number of hits used in fit (after outlier removal)
int	npar
	number of fit parameters
double	ndf
	weighed number of degrees of freedom
double	chi2
	chi2
int	numberOfIterations
	number of iterations

Detailed Description

Auxiliary data structure to convert model to super event.

Definition at line 41 of file JSuperEvtToolkit.hh.

Member Typedef Documentation

tx_type

typedef std::vector<tx_t> JACOUSTICS::JSuperEvt::tx_type

inherited

Definition at line 189 of file JSuperEvt.hh.

rx_type

typedef std::vector<rx_t> JACOUSTICS::JSuperEvt::rx_type

inherited

Definition at line 190 of file JSuperEvt.hh.

Constructor & Destructor Documentation

getSuperEvt()

template<class T >

JACOUSTICS::getSuperEvt::getSuperEvt ( const JHead & header, const JModel & model, T begin, T end )

inline

Constructor.

Parameters

header	header
model	model
begin	begin of hit data
end	end of hit data

Definition at line 53 of file JSuperEvtToolkit.hh.

                                   :
      JSuperEvt(getEvt(header, model))
    {
      for (JModel::emission_type::const_iterator i = model.emission.begin(); i != model.emission.end(); ++i) {
        this->tx.push_back(JSuperEvt::tx_t(i->first.getID(), i->first.getCounter(), i->second.t1));
      }

      for (T i = begin; i != end; ++i) {
        this->rx.push_back(JSuperEvt::rx_t(i->getID(), i->getCounter(), i->getString(), i->getFloor(), i->getValue(), i->getWeight()));
      }
    }

Member Function Documentation

read()

virtual JReader & JACOUSTICS::JSuperEvt::read ( JReader & in )

inlineoverridevirtualinherited

Read from input.

Parameters

in

reader

Returns

reader

Reimplemented from JACOUSTICS::JEvt.

Definition at line 233 of file JSuperEvt.hh.

    {
      JEvt::read(in);

      in >> this->rx;
      in >> this->tx;

      return in;
    }

write()

virtual JWriter & JACOUSTICS::JSuperEvt::write ( JWriter & out ) const

inlineoverridevirtualinherited

Write to output.

Parameters

out

writer

Returns

writer

Reimplemented from JACOUSTICS::JEvt.

Definition at line 250 of file JSuperEvt.hh.

    {
      JEvt::write(out);

      out << this->rx;
      out << this->tx;

      return out;
    }

ClassDefOverride() [1/2]

JACOUSTICS::JSuperEvt::ClassDefOverride ( JSuperEvt , 1  )

inherited

ClassDefOverride() [2/2]

JACOUSTICS::JEvt::ClassDefOverride ( JEvt , 9  )

inherited

ClassDef()

JACOUSTICS::JHead::ClassDef ( JHead , 7  )

inherited

Member Data Documentation

tx

tx_type JACOUSTICS::JSuperEvt::tx

inherited

Definition at line 192 of file JSuperEvt.hh.

rx

rx_type JACOUSTICS::JSuperEvt::rx

inherited

Definition at line 193 of file JSuperEvt.hh.

detid

int JACOUSTICS::JHead::detid

inherited

detector identifier

Definition at line 260 of file JEvt.hh.

UNIXTimeStart

double JACOUSTICS::JHead::UNIXTimeStart

inherited

start time

Definition at line 261 of file JEvt.hh.

UNIXTimeStop

double JACOUSTICS::JHead::UNIXTimeStop

inherited

stop time

Definition at line 262 of file JEvt.hh.

nhit

int JACOUSTICS::JHead::nhit

inherited

number of hits

Definition at line 263 of file JEvt.hh.

nfit

int JACOUSTICS::JHead::nfit

inherited

number of hits used in fit (after outlier removal)

Definition at line 264 of file JEvt.hh.

npar

int JACOUSTICS::JHead::npar

inherited

number of fit parameters

Definition at line 265 of file JEvt.hh.

ndf

double JACOUSTICS::JHead::ndf

inherited

weighed number of degrees of freedom

Definition at line 266 of file JEvt.hh.

chi2

double JACOUSTICS::JHead::chi2

inherited

chi2

Definition at line 267 of file JEvt.hh.

numberOfIterations

int JACOUSTICS::JHead::numberOfIterations

inherited

number of iterations

Definition at line 268 of file JEvt.hh.

---

The documentation for this struct was generated from the following file:

• JSuperEvtToolkit.hh
