JACOUSTICS::JEvt Struct Reference

Acoustic event fit. More...

#include <JEvt.hh>

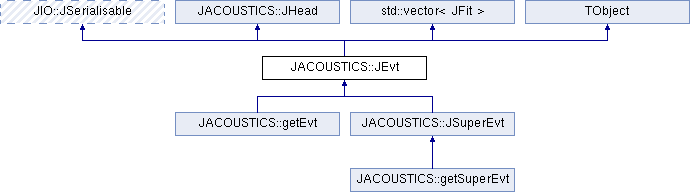

Inheritance diagram for JACOUSTICS::JEvt:

Classes
struct	JEvaluator
	Auxiliary class to determine value of acoustic events. More...

Public Member Functions
	JEvt ()
	Default constructor.
	JEvt (const JHead &header)
	Constructor.
virtual	~JEvt ()
	Virtual destructor.
virtual JReader &	read (JReader &in) override
	Read from input.
virtual JWriter &	write (JWriter &out) const override
	Write to output.
	ClassDefOverride (JEvt, 9)
	ClassDef (JHead, 7)

Public Attributes
int	detid
	detector identifier
double	UNIXTimeStart
	start time
double	UNIXTimeStop
	stop time
int	nhit
	number of hits
int	nfit
	number of hits used in fit (after outlier removal)
int	npar
	number of fit parameters
double	ndf
	weighed number of degrees of freedom
double	chi2
	chi2
int	numberOfIterations
	number of iterations

Friends
std::ostream &	operator<< (std::ostream &out, const JEvt &event)
	Write event to output.

Detailed Description

Acoustic event fit.

Definition at line 305 of file JEvt.hh.

Constructor & Destructor Documentation

JEvt() [1/2]

JACOUSTICS::JEvt::JEvt ( )

inline

Default constructor.

Definition at line 345 of file JEvt.hh.

           :
      JHead()
    {}

JEvt() [2/2]

JACOUSTICS::JEvt::JEvt ( const JHead & header )

inline

Constructor.

Parameters

header

header

Definition at line 355 of file JEvt.hh.

                              :
      JHead(header)
    {}

~JEvt()

virtual JACOUSTICS::JEvt::~JEvt ( )

inlinevirtual

Virtual destructor.

Definition at line 363 of file JEvt.hh.

    {}

Member Function Documentation

read()

virtual JReader & JACOUSTICS::JEvt::read ( JReader & in )

inlineoverridevirtual

Read from input.

Parameters

in

reader

Returns

reader

Reimplemented in JACOUSTICS::JSuperEvt.

Definition at line 401 of file JEvt.hh.

    {
      in >> static_cast<JHead&>            (*this);
      in >> static_cast<std::vector<JFit>&>(*this);

      return in;
    }

write()

virtual JWriter & JACOUSTICS::JEvt::write ( JWriter & out ) const

inlineoverridevirtual

Write to output.

Parameters

out

writer

Returns

writer

Reimplemented in JACOUSTICS::JSuperEvt.

Definition at line 416 of file JEvt.hh.

    {
      out << static_cast<const JHead&>            (*this);
      out << static_cast<const std::vector<JFit>&>(*this);

      return out;
    }

ClassDefOverride()

JACOUSTICS::JEvt::ClassDefOverride	(	JEvt	,
		9	)

ClassDef()

JACOUSTICS::JHead::ClassDef ( JHead , 7  )

inherited

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream & out, const JEvt & event )

friend

Write event to output.

Parameters

out	output stream
event	event

Returns

output stream

Definition at line 374 of file JEvt.hh.

    {
      using namespace std;

      out << event.detid                        << endl
          << FIXED(20,5) << event.UNIXTimeStart << endl
          << FIXED(20,5) << event.UNIXTimeStop  << endl
          << setw(5)     << event.nhit          << ' '
          << setw(5)     << event.nfit          << ' '
          << setw(4)     << event.npar          << endl
          << FIXED(12,3) << event.chi2          << '/'
          << FIXED(7,1)  << event.ndf           << endl;

      for (JEvt::const_iterator fit = event.begin(); fit != event.end(); ++fit) {
        out << *fit << endl;
      }

      return out;
    }

Member Data Documentation

detid

int JACOUSTICS::JHead::detid

inherited

detector identifier

Definition at line 260 of file JEvt.hh.

UNIXTimeStart

double JACOUSTICS::JHead::UNIXTimeStart

inherited

start time

Definition at line 261 of file JEvt.hh.

UNIXTimeStop

double JACOUSTICS::JHead::UNIXTimeStop

inherited

stop time

Definition at line 262 of file JEvt.hh.

nhit

int JACOUSTICS::JHead::nhit

inherited

number of hits

Definition at line 263 of file JEvt.hh.

nfit

int JACOUSTICS::JHead::nfit

inherited

number of hits used in fit (after outlier removal)

Definition at line 264 of file JEvt.hh.

npar

int JACOUSTICS::JHead::npar

inherited

number of fit parameters

Definition at line 265 of file JEvt.hh.

ndf

double JACOUSTICS::JHead::ndf

inherited

weighed number of degrees of freedom

Definition at line 266 of file JEvt.hh.

chi2

double JACOUSTICS::JHead::chi2

inherited

chi2

Definition at line 267 of file JEvt.hh.

numberOfIterations

int JACOUSTICS::JHead::numberOfIterations

inherited

number of iterations

Definition at line 268 of file JEvt.hh.

---

The documentation for this struct was generated from the following file:

• JEvt.hh
