Data structure for fit of straight line in positive z-direction with energy. More...

#include <JShowerEH.hh>

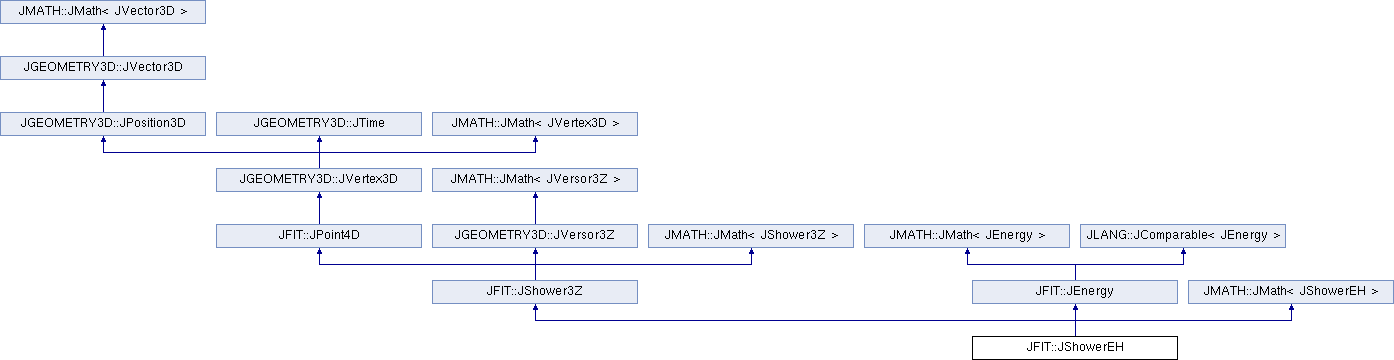

Inheritance diagram for JFIT::JShowerEH:

Public Types
typedef double JShowerEH::*	parameter_type

Public Member Functions
	JShowerEH ()
	Default constructor.

	JShowerEH (const JShower3Z &line, const double x, const double h, const double By=0.0)
	Constructor.

	JShowerEH (const JPoint4D &point, const JVersor3Z &dir, const double x, const double h, const double By=0.0)
	Constructor.

double	getEMEnergy () const
	Get EM Energy.

double	getHEnergy () const
	Get Hadronic Energy.

double	getBy () const
	Get bjorken y.

JShowerEH &	negate ()
	Prefix unary minus.

JShowerEH &	add (const JShowerEH &value)
	Addition operator.

JShowerEH &	sub (const JShowerEH &value)
	Subtraction operator.

JShowerEH &	mul (const double value)
	Multiplication operator.

JShowerEH &	div (const double value)
	Division operator.

double	getLogEem () const
	Get EM energy.

double	getEem () const
	Get EM energy.

void	putEem (const double E)
	Put EM energy.

double	getDEem () const
	Get derivative of energy.

double	getLogEh () const
	Get Hadronic energy.

double	getEh () const
	Get Hadronic energy.

void	putEh (const double E)
	Put Hadronic energy.

double	getDEh () const
	Get derivative of energy.

JShower3Z &	add (const JShower3Z &value)
	Addition operator.

JShower3Z &	sub (const JShower3Z &value)
	Subtraction operator.

const JEnergy &	getEnergy () const
	Get Energy.

void	setEnergy (const JEnergy &energy)
	Set Energy.

bool	less (const JEnergy &X) const
	Less than method.

JEnergy &	add (const JEnergy &value)
	Addition operator.

JEnergy &	sub (const JEnergy &value)
	Subtraction operator.

double	getlog10E () const
	Get energy.

double	getE () const
	Get energy.

void	putE (const double E)
	Put energy.

double	getDE () const
	Get derivative of energy.

Static Public Member Functions
static parameter_type	pEem ()

static parameter_type	pEh ()

static parameter_type	pBy ()

static parameter_type	pDX ()

static parameter_type	pDY ()

static parameter_type	pX ()

static parameter_type	pY ()

static parameter_type	pZ ()

static parameter_type	pT ()

static JEnergy	min ()
	Get minimum possible value.

static JEnergy	max ()
	Get maximum possible value.

static parameter_type	pE ()

Protected Attributes
double	__Eem

double	__Eh

double	__By

double	__X

Friends
std::istream &	operator>> (std::istream &in, JShowerEH &object)
	Read object from input.

std::ostream &	operator<< (std::ostream &out, const JShowerEH &object)
	Write object to output.

Detailed Description

Data structure for fit of straight line in positive z-direction with energy.

Note that the position coordinates are defined with respect to the given direction.

Definition at line 28 of file JShowerEH.hh.

Member Typedef Documentation

◆ parameter_type

typedef double JShowerEH::* JFIT::JShowerEH::parameter_type

Definition at line 310 of file JShowerEH.hh.

Constructor & Destructor Documentation

◆ JShowerEH() [1/3]

JFIT::JShowerEH::JShowerEH ( )

inline

Default constructor.

Definition at line 38 of file JShowerEH.hh.

                :
      JShower3Z(),
      __Eem(0.0),
      __Eh(0.0),
      __By(0.0)
    {}

◆ JShowerEH() [2/3]

JFIT::JShowerEH::JShowerEH	(	const JShower3Z &	line,
		const double	x,
		const double	h,
		const double	By = 0.0 )

inline

Constructor.

Parameters

line	line
x	EM shower energy
h	Hadronic shower energy
By	bjorken y

Definition at line 54 of file JShowerEH.hh.

                                                                                            :
      JShower3Z(line),
      __Eem(x),
      __Eh(h),
      __By(By)
    {}

◆ JShowerEH() [3/3]

JFIT::JShowerEH::JShowerEH	(	const JPoint4D &	point,
		const JVersor3Z &	dir,
		const double	x,
		const double	h,
		const double	By = 0.0 )

inline

Constructor.

Parameters

point	point
dir	direction
x	EM shower energy
h	Hadronic shower energy
By	bjorken y

Definition at line 70 of file JShowerEH.hh.

                                        :
      JShower3Z(JPoint4D(point), JVersor3Z(dir)),
      __Eem(x),
      __Eh(h),
      __By(By)
    {}

Member Function Documentation

◆ getEMEnergy()

double JFIT::JShowerEH::getEMEnergy ( ) const

inline

Get EM Energy.

Returns: EM Energy

Definition at line 87 of file JShowerEH.hh.

    {
      return __Eem;
    }

◆ getHEnergy()

double JFIT::JShowerEH::getHEnergy ( ) const

inline

Get Hadronic Energy.

Returns: Hadronic Energy

Definition at line 97 of file JShowerEH.hh.

    {
      return __Eh;
    }

◆ getBy()

double JFIT::JShowerEH::getBy ( ) const

inline

Get bjorken y.

Returns: bjorken y

Definition at line 107 of file JShowerEH.hh.

    {
      return __By;
    }

◆ negate()

JShowerEH & JFIT::JShowerEH::negate ( )

inline

Prefix unary minus.

Returns: shower

Definition at line 117 of file JShowerEH.hh.

    {
      JShower3Z::negate();
      __Eem = -__Eem;
      __Eh  = -__Eh;
      __By  = -__By;

      return *this;
    }

◆ add() [1/3]

JShowerEH & JFIT::JShowerEH::add ( const JShowerEH & value )

inline

Addition operator.

Parameters

value shower

Returns: shower

Definition at line 133 of file JShowerEH.hh.

    {
      JShower3Z::add(value);
      __Eem += value.getEMEnergy();
      __Eh  += value.getHEnergy();
      __By  += value.getBy();

      return *this;
    }

◆ sub() [1/3]

JShowerEH & JFIT::JShowerEH::sub ( const JShowerEH & value )

inline

Subtraction operator.

Parameters

value shower

Returns: shower

Definition at line 150 of file JShowerEH.hh.

    {
      JShower3Z::sub(value);
      __Eem -= value.getEMEnergy();
      __Eh  -= value.getHEnergy();
      __By  -= value.getBy();

      return *this;
    }

◆ mul()

JShowerEH & JFIT::JShowerEH::mul ( const double value )

inline

Multiplication operator.

Parameters

value multiplication factor

Returns: shower

Definition at line 167 of file JShowerEH.hh.

    {
      JShower3Z::mul(value);
      __Eem *= value;
      __Eh  *= value;
      __By  *= value;

      return *this;
    }

◆ div()

JShowerEH & JFIT::JShowerEH::div ( const double value )

inline

Division operator.

Parameters

value division factor

Returns: shower

Definition at line 184 of file JShowerEH.hh.

    {
      JShower3Z::div(value);
      __Eem /= value;
      __Eh  /= value;
      __By  /= value;

      return *this;
    }

◆ getLogEem()

double JFIT::JShowerEH::getLogEem ( ) const

inline

Get EM energy.

Returns: EM Energy [log(E/GeV)]

Definition at line 199 of file JShowerEH.hh.

    {
      return __Eem;
    }

◆ getEem()

double JFIT::JShowerEH::getEem ( ) const

inline

Get EM energy.

Returns: EM Energy [GeV]

Definition at line 209 of file JShowerEH.hh.

    {
      return pow(10.0, __Eem);
    }

◆ putEem()

void JFIT::JShowerEH::putEem ( const double E )

inline

Put EM energy.

Parameters

E	Energy [GeV]

Definition at line 219 of file JShowerEH.hh.

    {
      __Eem = log10(E);
    }

◆ getDEem()

double JFIT::JShowerEH::getDEem ( ) const

inline

Get derivative of energy.

Returns: dE/dx [GeV]

Definition at line 229 of file JShowerEH.hh.

    {
      return getEem() * log(10.0);
    }

◆ getLogEh()

double JFIT::JShowerEH::getLogEh ( ) const

inline

Get Hadronic energy.

Returns: H Energy [log(E/GeV)]

Definition at line 239 of file JShowerEH.hh.

    {
      return __Eh;
    }

◆ getEh()

double JFIT::JShowerEH::getEh ( ) const

inline

Get Hadronic energy.

Returns: H Energy [GeV]

Definition at line 249 of file JShowerEH.hh.

    {
      return pow(10.0, __Eh);
    }

◆ putEh()

void JFIT::JShowerEH::putEh ( const double E )

inline

Put Hadronic energy.

Parameters

E	Energy [GeV]

Definition at line 259 of file JShowerEH.hh.

    {
      __Eh = log10(E);
    }

◆ getDEh()

double JFIT::JShowerEH::getDEh ( ) const

inline

Get derivative of energy.

Returns: dE/dx [GeV]

Definition at line 269 of file JShowerEH.hh.

    {
      return getEh() * log(10.0);
    }

◆ pEem()

static parameter_type JFIT::JShowerEH::pEem ( )

inlinestatic

Definition at line 312 of file JShowerEH.hh.

312{ return &JShowerEH::__Eem; }

◆ pEh()

static parameter_type JFIT::JShowerEH::pEh ( )

inlinestatic

Definition at line 313 of file JShowerEH.hh.

313{ return &JShowerEH::__Eh; }

◆ pBy()

static parameter_type JFIT::JShowerEH::pBy ( )

inlinestatic

Definition at line 314 of file JShowerEH.hh.

314{ return &JShowerEH::__By; }

◆ add() [2/3]

JShower3Z & JFIT::JShower3Z::add ( const JShower3Z & value )

inlineinherited

Addition operator.

Parameters

value shower

Returns: shower

Definition at line 85 of file JShower3Z.hh.

    {
      JPoint4D ::add(value);
      JVersor3Z::add(value);

      return *this;
    }

◆ sub() [2/3]

JShower3Z & JFIT::JShower3Z::sub ( const JShower3Z & value )

inlineinherited

Subtraction operator.

Parameters

value shower

Returns: shower

Definition at line 99 of file JShower3Z.hh.

    {
      JPoint4D ::sub(value);
      JVersor3Z::sub(value);

      return *this;
    }

◆ pDX()

static parameter_type JFIT::JShower3Z::pDX ( )

inlinestaticinherited

Definition at line 171 of file JShower3Z.hh.

171{ return &JShower3Z::__dx; }

◆ pDY()

static parameter_type JFIT::JShower3Z::pDY ( )

inlinestaticinherited

Definition at line 172 of file JShower3Z.hh.

172{ return &JShower3Z::__dy; }

◆ pX()

static parameter_type JFIT::JPoint4D::pX ( )

inlinestaticinherited

Definition at line 58 of file JPoint4D.hh.

58{ return &JPoint4D::__x; }

◆ pY()

static parameter_type JFIT::JPoint4D::pY ( )

inlinestaticinherited

Definition at line 59 of file JPoint4D.hh.

59{ return &JPoint4D::__y; }

◆ pZ()

static parameter_type JFIT::JPoint4D::pZ ( )

inlinestaticinherited

Definition at line 60 of file JPoint4D.hh.

60{ return &JPoint4D::__z; }

◆ pT()

static parameter_type JFIT::JPoint4D::pT ( )

inlinestaticinherited

Definition at line 61 of file JPoint4D.hh.

61{ return &JPoint4D::__t; }

◆ getEnergy()

const JEnergy & JFIT::JEnergy::getEnergy ( ) const

inlineinherited

Get Energy.

Returns: Energy

Definition at line 56 of file JEnergy.hh.

    {
      return static_cast<const JEnergy&>(*this);
    }

◆ setEnergy()

void JFIT::JEnergy::setEnergy ( const JEnergy & energy )

inlineinherited

Set Energy.

Parameters

energy Energy

Definition at line 67 of file JEnergy.hh.

    {
      static_cast<JEnergy&>(*this) = energy;
    }

◆ less()

bool JFIT::JEnergy::less ( const JEnergy & X ) const

inlineinherited

Less than method.

Parameters

X	Energy [log(E/GeV)]

Returns: true if this energy less than given energy; else false

Definition at line 79 of file JEnergy.hh.

    {
      return __X < X.__X;
    }

◆ add() [3/3]

JEnergy & JFIT::JEnergy::add ( const JEnergy & value )

inlineinherited

Addition operator.

Parameters

value Energy

Returns: Energy

Definition at line 104 of file JEnergy.hh.

    {
      __X += value.__X;

      return *this;
    }

◆ sub() [3/3]

JEnergy & JFIT::JEnergy::sub ( const JEnergy & value )

inlineinherited

Subtraction operator.

Parameters

value Energy

Returns: Energy

Definition at line 118 of file JEnergy.hh.

    {
      __X -= value.__X;

      return *this;
    }

◆ getlog10E()

double JFIT::JEnergy::getlog10E ( ) const

inlineinherited

Get energy.

Returns: Energy [log(E/GeV)]

Definition at line 159 of file JEnergy.hh.

    {
      return __X;
    }

◆ getE()

double JFIT::JEnergy::getE ( ) const

inlineinherited

Get energy.

Returns: Energy [GeV]

Definition at line 170 of file JEnergy.hh.

    {
      return pow(10.0, __X);
    }

◆ putE()

void JFIT::JEnergy::putE ( const double E )

inlineinherited

Put energy.

Parameters

E	Energy [GeV]

Definition at line 181 of file JEnergy.hh.

    {
      __X = log10(E);
    }

◆ getDE()

double JFIT::JEnergy::getDE ( ) const

inlineinherited

Get derivative of energy.

Returns: dE/dx [GeV]

Definition at line 192 of file JEnergy.hh.

    {
      return getE() * log(10.0);
    }

◆ min()

static JEnergy JFIT::JEnergy::min ( )

inlinestaticinherited

Get minimum possible value.

Returns: minimum possible value

Definition at line 214 of file JEnergy.hh.

    {
      return JEnergy(std::numeric_limits<double>::lowest());
    }

◆ max()

static JEnergy JFIT::JEnergy::max ( )

inlinestaticinherited

Get maximum possible value.

Returns: maximum possible value

Definition at line 225 of file JEnergy.hh.

    {
      return JEnergy(std::numeric_limits<double>::max());
    }

◆ pE()

static parameter_type JFIT::JEnergy::pE ( )

inlinestaticinherited

Definition at line 263 of file JEnergy.hh.

263{ return &JEnergy::__X; }

Friends And Related Symbol Documentation

◆ operator>>

std::istream & operator>>	(	std::istream &	in,
		JShowerEH &	object )

friend

Read object from input.

Parameters

in	input stream
object	object

Returns: input stream

Definition at line 282 of file JShowerEH.hh.

    {
      in >> static_cast<JShower3Z&>(object);
      in >> object.__Eem;
      in >> object.__Eh;
      in >> object.__By;

      return in;
    }

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		const JShowerEH &	object )

friend

Write object to output.

Parameters

out	output stream
object	object

Returns: output stream

Definition at line 300 of file JShowerEH.hh.

    {
      out << static_cast<const JShower3Z&>(object);
      out << object.__Eem;
      out << object.__Eh;
      out << object.__By;

      return out;
    }

Member Data Documentation

◆ __Eem

double JFIT::JShowerEH::__Eem

protected

Definition at line 317 of file JShowerEH.hh.

◆ __Eh

double JFIT::JShowerEH::__Eh

protected

Definition at line 318 of file JShowerEH.hh.

◆ __By

double JFIT::JShowerEH::__By

protected

Definition at line 319 of file JShowerEH.hh.

◆ __X

double JFIT::JEnergy::__X

protectedinherited

Definition at line 266 of file JEnergy.hh.

The documentation for this class was generated from the following file:

JShowerEH.hh

Public Types

Public Member Functions

Static Public Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ parameter_type

Constructor & Destructor Documentation

◆ JShowerEH() [1/3]

◆ JShowerEH() [2/3]

◆ JShowerEH() [3/3]

Member Function Documentation

◆ getEMEnergy()

◆ getHEnergy()

◆ getBy()

◆ negate()

◆ add() [1/3]

◆ sub() [1/3]

◆ mul()

◆ div()

◆ getLogEem()

◆ getEem()

◆ putEem()

◆ getDEem()

◆ getLogEh()

◆ getEh()

◆ putEh()

◆ getDEh()

◆ pEem()

◆ pEh()

◆ pBy()

◆ add() [2/3]

◆ sub() [2/3]

◆ pDX()

◆ pDY()

◆ pX()

◆ pY()

◆ pZ()

◆ pT()

◆ getEnergy()

◆ setEnergy()

◆ less()

◆ add() [3/3]

◆ sub() [3/3]

◆ getlog10E()

◆ getE()

◆ putE()

◆ getDE()

◆ min()

◆ max()

◆ pE()

Friends And Related Symbol Documentation

◆ operator>>

◆ operator<<

Member Data Documentation

◆ __Eem

◆ __Eh

◆ __By

◆ __X
