JFIT::JShower3Z Class Reference

Data structure for cascade in positive z-direction. More...

#include <JShower3Z.hh>

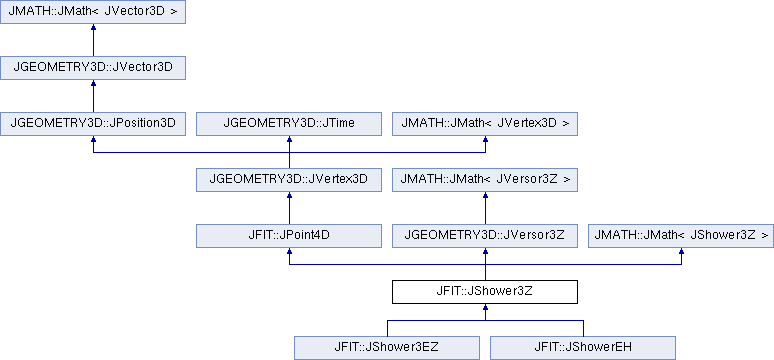

Inheritance diagram for JFIT::JShower3Z:

Public Types
typedef double JShower3Z::*	parameter_type

Public Member Functions
	JShower3Z ()
	Default constructor.
	JShower3Z (const JPoint4D &point, const JVersor3Z &dir)
	Constructor.
JShower3Z &	negate ()
	Prefix unary minus.
JShower3Z &	add (const JShower3Z &value)
	Addition operator.
JShower3Z &	sub (const JShower3Z &value)
	Subtraction operator.
JShower3Z &	mul (const double value)
	Multiplication operator.
JShower3Z &	div (const double value)
	Divison operator.

Static Public Member Functions
static parameter_type	pDX ()
static parameter_type	pDY ()
static parameter_type	pX ()
static parameter_type	pY ()
static parameter_type	pZ ()
static parameter_type	pT ()

Friends
std::istream &	operator>> (std::istream &in, JShower3Z &object)
	Read object from input.
std::ostream &	operator<< (std::ostream &out, const JShower3Z &object)
	Write object to output.

Detailed Description

Data structure for cascade in positive z-direction.

Note that the position coordinates are defined with respect to the given direction.

Definition at line 32 of file JShower3Z.hh.

Member Typedef Documentation

parameter_type

typedef double JShower3Z::* JFIT::JShower3Z::parameter_type

Definition at line 169 of file JShower3Z.hh.

Constructor & Destructor Documentation

JShower3Z() [1/2]

JFIT::JShower3Z::JShower3Z ( )

inline

Default constructor.

Definition at line 49 of file JShower3Z.hh.

                :
      JPoint4D(),
      JVersor3Z()
    {}

JShower3Z() [2/2]

JFIT::JShower3Z::JShower3Z ( const JPoint4D & point, const JVersor3Z & dir )

inline

Constructor.

Parameters

point	point
dir	direction

Definition at line 60 of file JShower3Z.hh.

                                   :
      JPoint4D(point),
      JVersor3Z(dir)
    {}

Member Function Documentation

negate()

JShower3Z & JFIT::JShower3Z::negate ( )

inline

Prefix unary minus.

Returns

shower

Definition at line 71 of file JShower3Z.hh.

    {
      JPoint4D ::negate();
      JVersor3Z::negate();

      return *this;
    }

add()

JShower3Z & JFIT::JShower3Z::add ( const JShower3Z & value )

inline

Addition operator.

Parameters

value

shower

Returns

shower

Definition at line 85 of file JShower3Z.hh.

    {
      JPoint4D ::add(value);
      JVersor3Z::add(value);

      return *this;
    }

sub()

JShower3Z & JFIT::JShower3Z::sub ( const JShower3Z & value )

inline

Subtraction operator.

Parameters

value

shower

Returns

shower

Definition at line 99 of file JShower3Z.hh.

    {
      JPoint4D ::sub(value);
      JVersor3Z::sub(value);

      return *this;
    }

mul()

JShower3Z & JFIT::JShower3Z::mul ( const double value )

inline

Multiplication operator.

Parameters

value

Returns

shower

Definition at line 113 of file JShower3Z.hh.

    {
      JPoint4D ::mul(value);
      JVersor3Z::mul(value);

      return *this;
    }

div()

JShower3Z & JFIT::JShower3Z::div ( const double value )

inline

Divison operator.

Parameters

value

Returns

shower

Definition at line 127 of file JShower3Z.hh.

    {
      JPoint4D ::div(value);
      JVersor3Z::div(value);

      return *this;
    }

pDX()

static parameter_type JFIT::JShower3Z::pDX ( )

inlinestatic

Definition at line 171 of file JShower3Z.hh.

{ return &JShower3Z::__dx; }

pDY()

static parameter_type JFIT::JShower3Z::pDY ( )

inlinestatic

Definition at line 172 of file JShower3Z.hh.

{ return &JShower3Z::__dy; }

pX()

static parameter_type JFIT::JPoint4D::pX ( )

inlinestaticinherited

Definition at line 58 of file JPoint4D.hh.

{ return &JPoint4D::__x; }

pY()

static parameter_type JFIT::JPoint4D::pY ( )

inlinestaticinherited

Definition at line 59 of file JPoint4D.hh.

{ return &JPoint4D::__y; }

pZ()

static parameter_type JFIT::JPoint4D::pZ ( )

inlinestaticinherited

Definition at line 60 of file JPoint4D.hh.

{ return &JPoint4D::__z; }

pT()

static parameter_type JFIT::JPoint4D::pT ( )

inlinestaticinherited

Definition at line 61 of file JPoint4D.hh.

{ return &JPoint4D::__t; }

Friends And Related Symbol Documentation

operator>>

std::istream & operator>> ( std::istream & in, JShower3Z & object )

friend

Read object from input.

Parameters

in	input stream
object	object

Returns

input stream

Definition at line 142 of file JShower3Z.hh.

    {
      in >> static_cast<JPoint4D&>(object);
      in >> object.__dx;
      in >> object.__dy;

      return in;
    }

operator<<

std::ostream & operator<< ( std::ostream & out, const JShower3Z & object )

friend

Write object to output.

Parameters

out	output stream
object	object

Returns

output stream

Definition at line 159 of file JShower3Z.hh.

    {
      out << static_cast<const JPoint4D&>(object);
      out << ' ' << object.__dx;
      out << ' ' << object.__dy;

      return out;
    }

---

The documentation for this class was generated from the following file:

• JShower3Z.hh
