Data structure for fit of straight line in positive z-direction with energy. More...

#include <JShower3EZ.hh>

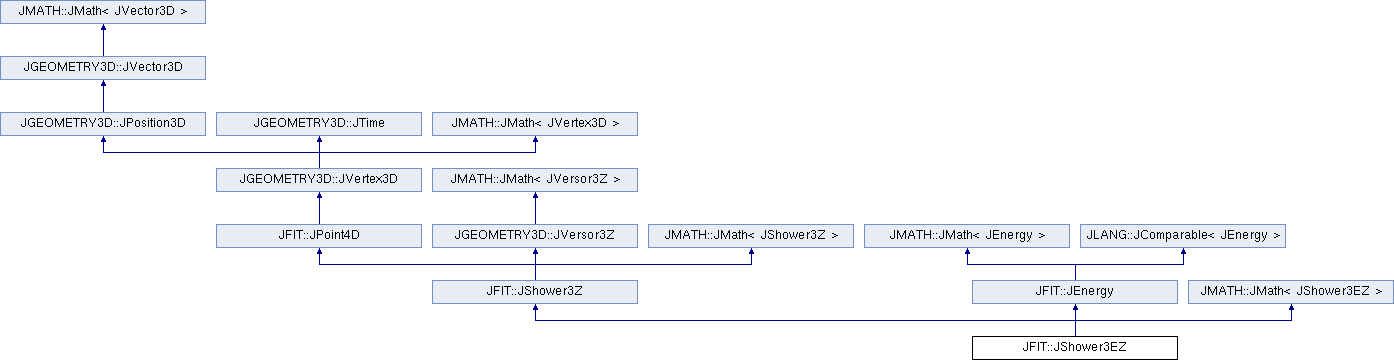

Inheritance diagram for JFIT::JShower3EZ:

Public Types
typedef double JShower3EZ::*	parameter_type

Public Member Functions
	JShower3EZ ()
	Default constructor.

	JShower3EZ (const JShower3Z &line, const double &E=0, const double By=1.0)
	Constructor.

	JShower3EZ (const JPoint4D &point, const JVersor3Z &dir, const double E=0, const double By=1.0)
	Constructor.

double	getBy () const
	Get bjorken y.

double	getE () const
	Get E.

JShower3EZ &	negate ()
	Prefix unary minus.

JShower3EZ &	add (const JShower3EZ &value)
	Addition operator.

JShower3EZ &	sub (const JShower3EZ &value)
	Subtraction operator.

JShower3EZ &	mul (const double value)
	Multiplication operator.

JShower3EZ &	div (const double value)
	Division operator.

JShower3Z &	add (const JShower3Z &value)
	Addition operator.

JShower3Z &	sub (const JShower3Z &value)
	Subtraction operator.

Static Public Member Functions
static parameter_type	pBy ()

static parameter_type	pE ()

static parameter_type	pDX ()

static parameter_type	pDY ()

static parameter_type	pX ()

static parameter_type	pY ()

static parameter_type	pZ ()

static parameter_type	pT ()

Protected Attributes
double	__E

double	__By

Friends
std::istream &	operator>> (std::istream &in, JShower3EZ &object)
	Read object from input.

std::ostream &	operator<< (std::ostream &out, const JShower3EZ &object)
	Write object to output.

Detailed Description

Data structure for fit of straight line in positive z-direction with energy.

Note that the position coordinates are defined with respect to the given direction.

Definition at line 27 of file JShower3EZ.hh.

Member Typedef Documentation

◆ parameter_type

typedef double JShower3EZ::* JFIT::JShower3EZ::parameter_type

Definition at line 202 of file JShower3EZ.hh.

Constructor & Destructor Documentation

◆ JShower3EZ() [1/3]

JFIT::JShower3EZ::JShower3EZ ( )

inline

Default constructor.

Definition at line 36 of file JShower3EZ.hh.

                 :
      JShower3Z()
    {}

◆ JShower3EZ() [2/3]

JFIT::JShower3EZ::JShower3EZ	(	const JShower3Z &	line,
		const double &	E = 0,
		const double	By = 1.0 )

inline

Constructor.

Parameters

line	line
E	E [GeV]
By	bjorken y

Definition at line 48 of file JShower3EZ.hh.

                                                                                  :
      JShower3Z(line),
      __E(E),
      __By(By)
    {}

◆ JShower3EZ() [3/3]

JFIT::JShower3EZ::JShower3EZ	(	const JPoint4D &	point,
		const JVersor3Z &	dir,
		const double	E = 0,
		const double	By = 1.0 )

inline

Constructor.

Parameters

point	point
dir	direction
E	E [GeV]
By	bjorken y

Definition at line 62 of file JShower3EZ.hh.

                                     :
      JShower3Z(JPoint4D(point), JVersor3Z(dir)),
      __E(E),
      __By(By)
    {}

Member Function Documentation

◆ getBy()

double JFIT::JShower3EZ::getBy ( ) const

inline

Get bjorken y.

Returns: bjorken y

Definition at line 76 of file JShower3EZ.hh.

    {
      return __By;
    }

◆ getE()

double JFIT::JShower3EZ::getE ( ) const

inline

Get E.

Returns: Energy [GeV]

Definition at line 86 of file JShower3EZ.hh.

    {
      return __E;
    }

◆ negate()

JShower3EZ & JFIT::JShower3EZ::negate ( )

inline

Prefix unary minus.

Returns: shower

Definition at line 95 of file JShower3EZ.hh.

    {
      JShower3Z::negate();
      __E  = -__E;
      __By = -__By;

      return *this;
    }

◆ add() [1/2]

JShower3EZ & JFIT::JShower3EZ::add ( const JShower3EZ & value )

inline

Addition operator.

Parameters

value shower

Returns: shower

Definition at line 111 of file JShower3EZ.hh.

    {
      JShower3Z::add(value);
      __E  += value.getE();
      __By += value.getBy();

      return *this;
    }

◆ sub() [1/2]

JShower3EZ & JFIT::JShower3EZ::sub ( const JShower3EZ & value )

inline

Subtraction operator.

Parameters

value shower

Returns: shower

Definition at line 127 of file JShower3EZ.hh.

    {
      JShower3Z::sub(value);
      __E  -= value.getE();
      __By -= value.getBy();

      return *this;
    }

◆ mul()

JShower3EZ & JFIT::JShower3EZ::mul ( const double value )

inline

Multiplication operator.

Parameters

value multiplication factor

Returns: shower

Definition at line 143 of file JShower3EZ.hh.

    {
      JShower3Z::mul(value);
      __E  *= value;
      __By *= value;

      return *this;
    }

◆ div()

JShower3EZ & JFIT::JShower3EZ::div ( const double value )

inline

Division operator.

Parameters

value division factor

Returns: shower

Definition at line 159 of file JShower3EZ.hh.

    {
      JShower3Z::div(value);
      __E  /= value;
      __By /= value;

      return *this;
    }

◆ pBy()

static parameter_type JFIT::JShower3EZ::pBy ( )

inlinestatic

Definition at line 204 of file JShower3EZ.hh.

204{ return &JShower3EZ::__By; }

◆ pE()

static parameter_type JFIT::JShower3EZ::pE ( )

inlinestatic

Definition at line 205 of file JShower3EZ.hh.

205{ return &JShower3EZ::__E; }

◆ add() [2/2]

JShower3Z & JFIT::JShower3Z::add ( const JShower3Z & value )

inlineinherited

Addition operator.

Parameters

value shower

Returns: shower

Definition at line 85 of file JShower3Z.hh.

    {
      JPoint4D ::add(value);
      JVersor3Z::add(value);

      return *this;
    }

◆ sub() [2/2]

JShower3Z & JFIT::JShower3Z::sub ( const JShower3Z & value )

inlineinherited

Subtraction operator.

Parameters

value shower

Returns: shower

Definition at line 99 of file JShower3Z.hh.

    {
      JPoint4D ::sub(value);
      JVersor3Z::sub(value);

      return *this;
    }

◆ pDX()

static parameter_type JFIT::JShower3Z::pDX ( )

inlinestaticinherited

Definition at line 171 of file JShower3Z.hh.

171{ return &JShower3Z::__dx; }

◆ pDY()

static parameter_type JFIT::JShower3Z::pDY ( )

inlinestaticinherited

Definition at line 172 of file JShower3Z.hh.

172{ return &JShower3Z::__dy; }

◆ pX()

static parameter_type JFIT::JPoint4D::pX ( )

inlinestaticinherited

Definition at line 58 of file JPoint4D.hh.

58{ return &JPoint4D::__x; }

◆ pY()

static parameter_type JFIT::JPoint4D::pY ( )

inlinestaticinherited

Definition at line 59 of file JPoint4D.hh.

59{ return &JPoint4D::__y; }

◆ pZ()

static parameter_type JFIT::JPoint4D::pZ ( )

inlinestaticinherited

Definition at line 60 of file JPoint4D.hh.

60{ return &JPoint4D::__z; }

◆ pT()

static parameter_type JFIT::JPoint4D::pT ( )

inlinestaticinherited

Definition at line 61 of file JPoint4D.hh.

61{ return &JPoint4D::__t; }

Friends And Related Symbol Documentation

◆ operator>>

std::istream & operator>>	(	std::istream &	in,
		JShower3EZ &	object )

friend

Read object from input.

Parameters

in	input stream
object	object

Returns: input stream

Definition at line 176 of file JShower3EZ.hh.

    {
      in >> static_cast<JShower3Z&>(object);
      in >> object.__E;
      in >> object.__By;

      return in;
    }

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		const JShower3EZ &	object )

friend

Write object to output.

Parameters

out	output stream
object	object

Returns: output stream

Definition at line 193 of file JShower3EZ.hh.

    {
      out << static_cast<const JShower3Z&>(object);
      out << object.__E;
      out << object.__By;

      return out;
    }

Member Data Documentation

◆ __E

double JFIT::JShower3EZ::__E

protected

Definition at line 207 of file JShower3EZ.hh.

◆ __By

double JFIT::JShower3EZ::__By

protected

Definition at line 208 of file JShower3EZ.hh.

The documentation for this class was generated from the following file:

JShower3EZ.hh
