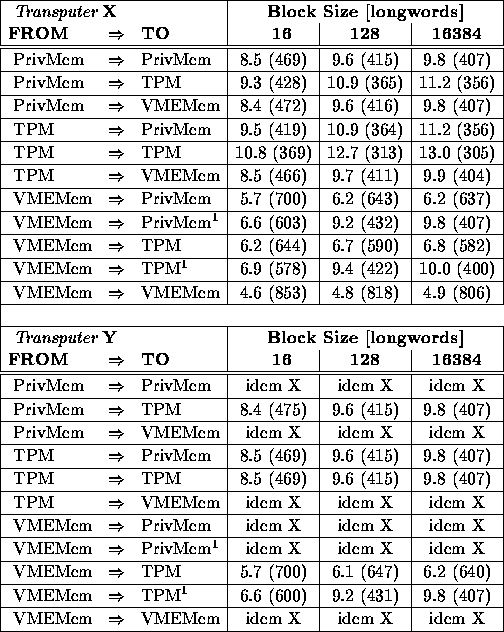

Table 13: Measured data transfer rates of the
2TP-VME.
Values are in Megabytes per second and - between brackets - in
nanoseconds per dataword transfer
(for block transfers with 32-bit datawords).
The transfers are done by transputer block move instructions.
Rates include the time it takes for the transputer to set up
the transfer.
PrivMem = private memory of a 2TP-VME transputer,
TPM = the 2TP-VME's Triple Port Memory,
VMEMem = another 2TP-VME's Triple Port Memory.
[1]transfer in Postfetch Mode
