Figures 1 (the AORTA-V1 'mother'board) and 2 (the wire-wrapped AORTA-V2 'add-on'-board) show the locations of the onboard jumpers and switches; some explanations have been added where necessary.
Table 8 lists jumper-placements for setting the priorities of the different types of VME-interrupts the AORTA-V2 can generate, in case the interrupt levels are set identical. See figure 2.

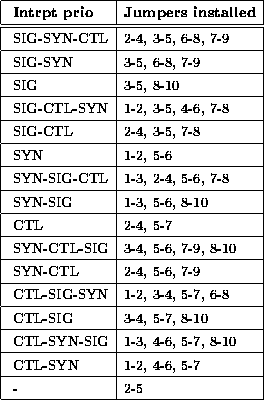

Table 8: Jumper settings for interrupt priorities of in case of identical
interrupt level settings of the control character (CTL),
NODATA (SYN) and NOSIGNAL (SIG) interrupts.

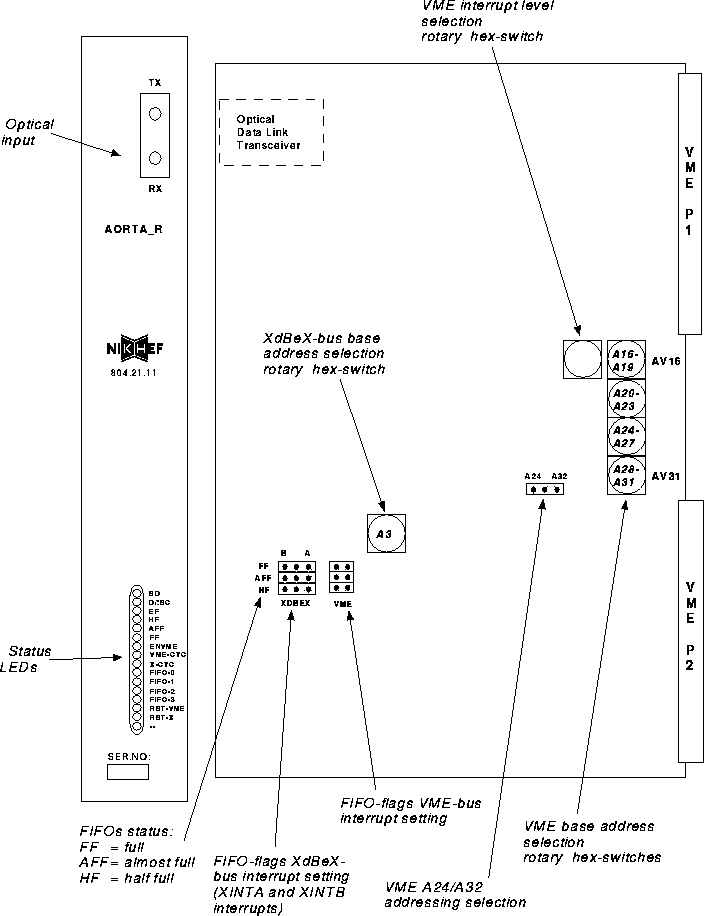

Figure 1: Layout of the AORTA-V1 board (=AORTA-V2 prototype's left board).

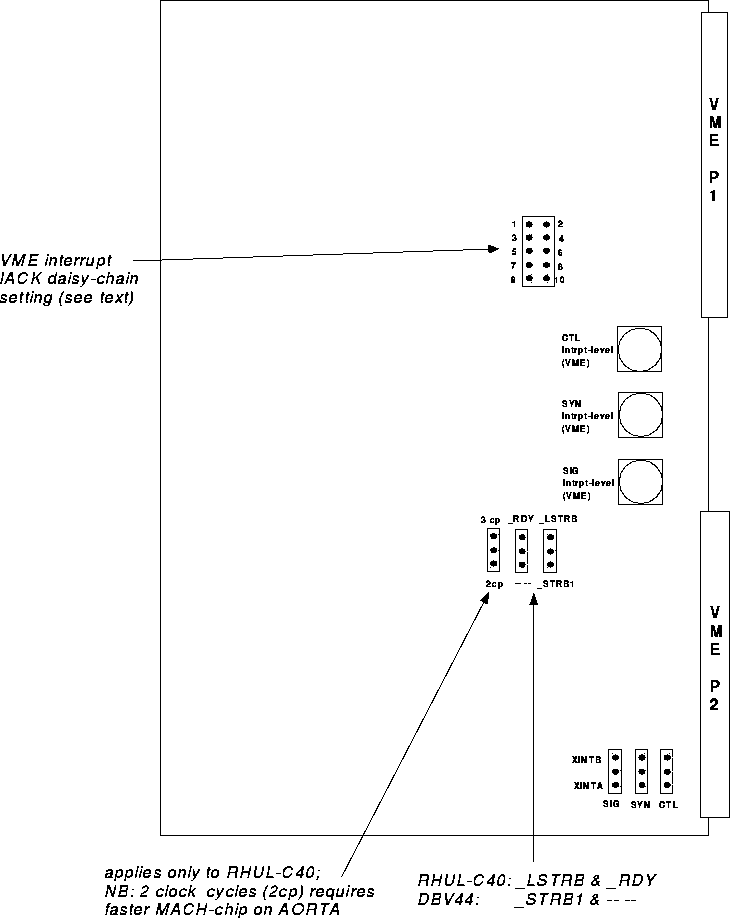

Figure 2: Layout of the add-on board (=the wire-wrapped AORTA-V2 prototype's
right board).
