The AORTA-R-V2 can be controlled via an XdBeX interface available on its VME P2 connector. The 6-bit XdBeX base address of the board can be set over the full 6-bits address range in steps of 8 using an on-board rotary hex-switch.

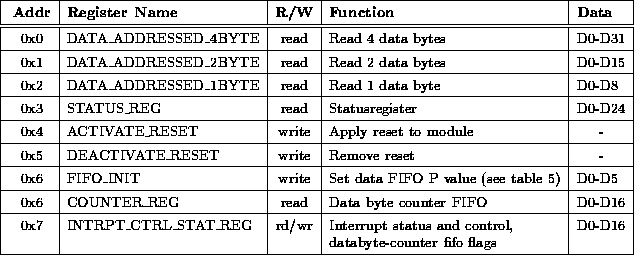

Table 3 shows the mapping of the available registers and address locations relative to the base address, their function and their read/write capability.
Table 3: The XdBeX memory map of the AORTA-R-V2
