KM3NETDAQ::JDAQClient_t Struct Reference

Auxiliary data structure for DAQ client data. More...

#include <JDAQClient.hh>

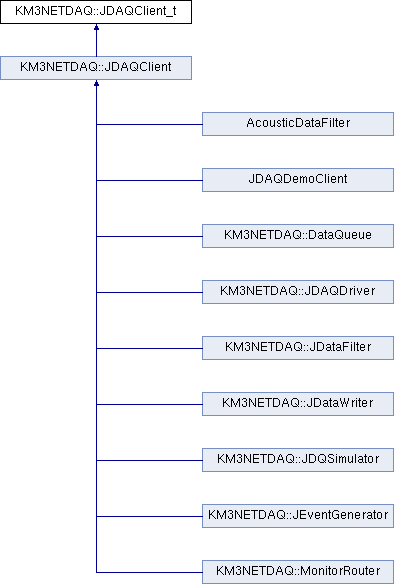

Inheritance diagram for KM3NETDAQ::JDAQClient_t:

Public Member Functions
	JDAQClient_t (JDAQStateMachine *chsm)
	Constructor.
const std::string &	getHostname () const
	Get hostname.
const std::string &	getFullName () const
	Get full name of this run control client.
const JTag &	getUniqueTag () const
	Get unique tag of this run control client.
long long int	getClockDelay () const
	Get total delay time.
long long int	getClockInterval () const
	Get interval time.
void	setClockInterval (const long long int interval_us)
	Set interval time.
void	resetClock ()
	Reset clock.
const std::string &	getEventInfo () const
	Get last event information.
void	setEventInfo (const std::string &info)
	Set last event information.

Static Public Attributes
static const int	TIMEOUT_S = 1
	time out of update [s]

Protected Attributes
JEventTable	eventTable
	event table
std::string	hostname
std::string	fullname
JTag	unique_tag
JTimekeeper	clock
	central clock
std::string	event_info
	event information

Detailed Description

Auxiliary data structure for DAQ client data.

Definition at line 61 of file JDAQClient.hh.

Constructor & Destructor Documentation

JDAQClient_t()

KM3NETDAQ::JDAQClient_t::JDAQClient_t ( JDAQStateMachine * chsm )

inline

Constructor.

Parameters

chsm	state machine

Definition at line 71 of file JDAQClient.hh.

    {
      using namespace std;
      using namespace JPP;

      hostname   = getHostname();
      fullname   = KM3NETDAQ::getFullName (hostname, chsm->getName());
      unique_tag = KM3NETDAQ::getUniqueTag(hostname, chsm->getName());

      for (JTag buffer[] = { RC_CMD, unique_tag, DISPTAG_UNDEFINED }, *tag = buffer; *tag != DISPTAG_UNDEFINED; ++tag) {

        eventTable.insert(*tag, chsm->ev_init);
        eventTable.insert(*tag, chsm->ev_configure);
        eventTable.insert(*tag, chsm->ev_start);
        eventTable.insert(*tag, chsm->ev_pause);
        eventTable.insert(*tag, chsm->ev_continue);
        eventTable.insert(*tag, chsm->ev_stop);
        eventTable.insert(*tag, chsm->ev_reset);
        eventTable.insert(*tag, chsm->ev_quit);
        eventTable.insert(*tag, chsm->ev_off);

        eventTable.insert(*tag, chsm->ev_check);
        eventTable.insert(*tag, chsm->ev_input);

        eventTable.insert(*tag, chsm->ev_recover);
      }

      JControlHost::Throw(true);

      setClockInterval(TIMEOUT_S * 1000000LL);
    }

Member Function Documentation

getHostname()

const std::string & KM3NETDAQ::JDAQClient_t::getHostname ( ) const

inline

Get hostname.

Returns

host name

Definition at line 109 of file JDAQClient.hh.

    {
      return hostname;
    }

getFullName()

const std::string & KM3NETDAQ::JDAQClient_t::getFullName ( ) const

inline

Get full name of this run control client.

Returns

full name

Definition at line 120 of file JDAQClient.hh.

    {
      return fullname;
    }

getUniqueTag()

const JTag & KM3NETDAQ::JDAQClient_t::getUniqueTag ( ) const

inline

Get unique tag of this run control client.

Returns

unique tag

Definition at line 131 of file JDAQClient.hh.

    {
      return unique_tag;
    }

getClockDelay()

long long int KM3NETDAQ::JDAQClient_t::getClockDelay ( ) const

inline

Get total delay time.

Returns

delay time [us]

Definition at line 142 of file JDAQClient.hh.

    {
      return clock.getDelay();
    }

getClockInterval()

long long int KM3NETDAQ::JDAQClient_t::getClockInterval ( ) const

inline

Get interval time.

Returns

interval time [us]

Definition at line 154 of file JDAQClient.hh.

    {
      return clock.getInterval();
    }

setClockInterval()

void KM3NETDAQ::JDAQClient_t::setClockInterval ( const long long int interval_us )

inline

Set interval time.

Parameters

interval_us

interval time [us]

Definition at line 165 of file JDAQClient.hh.

    {
      clock.setInterval(interval_us);
    }

resetClock()

void KM3NETDAQ::JDAQClient_t::resetClock ( )

inline

Reset clock.

Definition at line 174 of file JDAQClient.hh.

    {
      clock.reset();
    }

getEventInfo()

const std::string & KM3NETDAQ::JDAQClient_t::getEventInfo ( ) const

inline

Get last event information.

Returns

event information

Definition at line 185 of file JDAQClient.hh.

    {
      return event_info;
    }

setEventInfo()

void KM3NETDAQ::JDAQClient_t::setEventInfo ( const std::string & info )

inline

Set last event information.

Parameters

info	event information

Definition at line 196 of file JDAQClient.hh.

    {
      this->event_info = info;
    }

Member Data Documentation

TIMEOUT_S

const int KM3NETDAQ::JDAQClient_t::TIMEOUT_S = 1

static

time out of update [s]

Definition at line 63 of file JDAQClient.hh.

eventTable

JEventTable KM3NETDAQ::JDAQClient_t::eventTable

protected

event table

Definition at line 203 of file JDAQClient.hh.

hostname

std::string KM3NETDAQ::JDAQClient_t::hostname

protected

Definition at line 204 of file JDAQClient.hh.

fullname

std::string KM3NETDAQ::JDAQClient_t::fullname

protected

Definition at line 205 of file JDAQClient.hh.

unique_tag

JTag KM3NETDAQ::JDAQClient_t::unique_tag

protected

Definition at line 206 of file JDAQClient.hh.

clock

JTimekeeper KM3NETDAQ::JDAQClient_t::clock

protected

central clock

Definition at line 207 of file JDAQClient.hh.

event_info

std::string KM3NETDAQ::JDAQClient_t::event_info

protected

event information

Definition at line 208 of file JDAQClient.hh.

---

The documentation for this struct was generated from the following file:

• JDAQClient.hh
