JASTRONOMY::JRealExperiment Struct Reference

Real experiment using PDF of signal and background. More...

#include <JRealExperiment.hh>

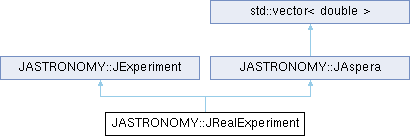

Inheritance diagram for JASTRONOMY::JRealExperiment:
JASTRONOMY::JExperiment JASTRONOMY::JAspera std::vector< double >

Classes

struct  remnant_type


Public Member Functions

 JRealExperiment ()
 Default constructor.

template<class H_t >
 JRealExperiment (const H_t &hd, const H_t &hs, const H_t &hb)
 Constructor.

void add (const TObject *pd, const TObject *ps, const TObject *pb)
 Add objects with data and PDFs of signal and background.

void add (const TH1 &hd, const TH1 &hs, const TH1 &hb)
 Add histograms with data and PDFs of signal and background.

void add (const TH2 &hd, const TH2 &hs, const TH2 &hb)
 Add histograms with data and PDFs of signal and background.

void add (const TH3 &hd, const TH3 &hs, const TH3 &hb)
 Add histograms with data and PDFs of signal and background.

void add (const size_t n, const double s, const double b)
 Add data, signal and background.

void add ()
 Add remnant data, signal and background.

void put (const double s, const double b)
 Put signal and background to list of pre-computed N/S values.

void put (const size_t n, const double s, const double b)
 Put signal and background to list of pre-computed N/S values.

double getLikelihood (const double p) const
 Get likelihood for given signal strength.

double getDerivative (const double p) const
 Get derivative of likelihood for given signal strength.

fit_type operator() (const bool ns=false) const
 Fit signal strength.

double getTestStatisticForUpperLimit (const double ps) const
 Get test statistic for given signal strength.

double getSignal () const
 Get total signal strength.

void setSignal (const double wS)
 Set signal strength.

void addSignal (const double wS)
 Add signal strength.


Static Public Member Functions

static double getSNR ()
 Get minimal signa-to-noise ratio.

static void setSNR (const double value)
 Set minimal signa-to-noise ratio.

static bool check (const double s, const double b)
 Check validity of signal and background.

static bool check (const TAxis *ha, const TAxis *hb)
 Check histogram bins.

static bool check (const TH1 &ha, const TH1 &hb)
 Check histogram bins.

static bool check (const TH2 &ha, const TH2 &hb)
 Check histogram bins.

static bool check (const TH3 &ha, const TH3 &hb)
 Check histogram bins.


Static Public Attributes

static constexpr double EPSILON = 1.0e-3
 precision determination of signal strength


Protected Member Functions

template<class H_t >
bool add (const TObject *pd, const TObject *ps, const TObject *pb)
 Add objects with data and PDFs of signal and background.


Protected Attributes

struct JASTRONOMY::JRealExperiment::remnant_type remnant

double ws = 0.0
 total signal strength


Static Private Member Functions

static double & get_snr ()
 Get minimal signa-to-noise ratio.


Detailed Description

Real experiment using PDF of signal and background.

Definition at line 29 of file JRealExperiment.hh.

Constructor & Destructor Documentation

◆ JRealExperiment() [1/2]

JASTRONOMY::JRealExperiment::JRealExperiment ( )
inline

Default constructor.

Definition at line 36 of file JRealExperiment.hh.

37 {}

◆ JRealExperiment() [2/2]

template<class H_t >
JASTRONOMY::JRealExperiment::JRealExperiment ( const H_t & hd,
const H_t & hs,
const H_t & hb )
inline

Constructor.

Parameters
hdhistogram with data
hshistogram with PDF of signal
hbhistogram with PDF of background

Definition at line 48 of file JRealExperiment.hh.

51 {
52 add(hd, hs, hb);
53 }
JASTRONOMY::JRealExperiment::add
void add()
Add remnant data, signal and background.
Definition JRealExperiment.hh:158

Member Function Documentation

◆ add() [1/7]

void JASTRONOMY::JRealExperiment::add ( const TObject * pd,
const TObject * ps,
const TObject * pb )
inline

Add objects with data and PDFs of signal and background.

Parameters
pdpointer to object with data
pspointer to object with PDF of signal
pbpointer to object with PDF of background

Definition at line 63 of file JRealExperiment.hh.

66 {
67 if (add<TH3>(pd, ps, pb)) { return; }
68 if (add<TH2>(pd, ps, pb)) { return; }
69 if (add<TH1>(pd, ps, pb)) { return; }
70 }

◆ add() [2/7]

void JASTRONOMY::JRealExperiment::add ( const TH1 & hd,
const TH1 & hs,
const TH1 & hb )
inline

Add histograms with data and PDFs of signal and background.

Parameters
hdhistogram with data
hshistogram with PDF of signal
hbhistogram with PDF of background

Definition at line 80 of file JRealExperiment.hh.

83 {
84 for (Int_t ix = 1; ix <= hs.GetXaxis()->GetNbins(); ++ix) {
85 add(hd.GetBinContent(ix),
86 hs.GetBinContent(ix),
87 hb.GetBinContent(ix));
88 }
89 }

◆ add() [3/7]

void JASTRONOMY::JRealExperiment::add ( const TH2 & hd,
const TH2 & hs,
const TH2 & hb )
inline

Add histograms with data and PDFs of signal and background.

Parameters
hdhistogram with data
hshistogram with PDF of signal
hbhistogram with PDF of background

Definition at line 99 of file JRealExperiment.hh.

102 {
103 for (Int_t ix = 1; ix <= hs.GetXaxis()->GetNbins(); ++ix) {
104 for (Int_t iy = 1; iy <= hs.GetYaxis()->GetNbins(); ++iy) {
105 add(hd.GetBinContent(ix, iy),
106 hs.GetBinContent(ix, iy),
107 hb.GetBinContent(ix, iy));
108 }
109 }
110 }

◆ add() [4/7]

void JASTRONOMY::JRealExperiment::add ( const TH3 & hd,
const TH3 & hs,
const TH3 & hb )
inline

Add histograms with data and PDFs of signal and background.

Parameters
hdhistogram with data
hshistogram with PDF of signal
hbhistogram with PDF of background

Definition at line 120 of file JRealExperiment.hh.

123 {
124 for (Int_t ix = 1; ix <= hs.GetXaxis()->GetNbins(); ++ix) {
125 for (Int_t iy = 1; iy <= hs.GetYaxis()->GetNbins(); ++iy) {
126 for (Int_t iz = 1; iz <= hs.GetZaxis()->GetNbins(); ++iz) {
127 add(hd.GetBinContent(ix, iy, iz),
128 hs.GetBinContent(ix, iy, iz),
129 hb.GetBinContent(ix, iy, iz));
130 }
131 }
132 }
133 }

◆ add() [5/7]

void JASTRONOMY::JRealExperiment::add ( const size_t n,
const double s,
const double b )
inline

Add data, signal and background.

Parameters
ndata
ssignal
bbackground

Definition at line 143 of file JRealExperiment.hh.

146 {
147 if (check(s, b)) {
148 put(n, s, b);
149 } else {
150 remnant.add(n, s, b);
151 }
152 }
JASTRONOMY::JAspera::put
void put(const double s, const double b)
Put signal and background to list of pre-computed N/S values.
Definition JAspera.hh:44
JASTRONOMY::JExperiment::check
static bool check(const double s, const double b)
Check validity of signal and background.
Definition JExperiment.hh:58
JASTRONOMY::JRealExperiment::remnant_type::add
void add(const size_t n, const double s, const double b)
Definition JRealExperiment.hh:204
JASTRONOMY::JRealExperiment::remnant
struct JASTRONOMY::JRealExperiment::remnant_type remnant

◆ add() [6/7]

void JASTRONOMY::JRealExperiment::add ( )
inline

Add remnant data, signal and background.

Definition at line 158 of file JRealExperiment.hh.

159 {
160 if (remnant.n != 0) {
161
162 add(remnant.n, remnant.s, remnant.b);
163
164 remnant.reset();
165 }
166 }
JASTRONOMY::JRealExperiment::remnant_type::b
double b
Definition JRealExperiment.hh:220
JASTRONOMY::JRealExperiment::remnant_type::n
size_t n
Definition JRealExperiment.hh:218
JASTRONOMY::JRealExperiment::remnant_type::reset
void reset()
Definition JRealExperiment.hh:211
JASTRONOMY::JRealExperiment::remnant_type::s
double s
Definition JRealExperiment.hh:219

◆ add() [7/7]

template<class H_t >
bool JASTRONOMY::JRealExperiment::add ( const TObject * pd,
const TObject * ps,
const TObject * pb )
inlineprotected

Add objects with data and PDFs of signal and background.

Parameters
pdpointer to object with data
pspointer to object with PDF of signal
pbpointer to object with PDF of background
Returns
true if added; else false

Definition at line 178 of file JRealExperiment.hh.

181 {
182 if (dynamic_cast<const H_t*>(pd) != NULL &&
183 dynamic_cast<const H_t*>(ps) != NULL &&
184 dynamic_cast<const H_t*>(pb) != NULL) {
185
186 const H_t& hd = dynamic_cast<const H_t&>(*pd);
187 const H_t& hs = dynamic_cast<const H_t&>(*ps);
188 const H_t& hb = dynamic_cast<const H_t&>(*pb);
189
190 if (check(hd, hs) && check(hs, hb)) {
191
192 add(hd, hs, hb);
193
194 return true;
195 }
196 }
197
198 return false;
199 }

◆ getSNR()

static double JASTRONOMY::JExperiment::getSNR ( )
inlinestaticinherited

Get minimal signa-to-noise ratio.

Returns
signa-to-noise ratio.

Definition at line 33 of file JExperiment.hh.

34 {
35 return get_snr();
36 }
JASTRONOMY::JExperiment::get_snr
static double & get_snr()
Get minimal signa-to-noise ratio.
Definition JExperiment.hh:125

◆ setSNR()

static void JASTRONOMY::JExperiment::setSNR ( const double value)
inlinestaticinherited

Set minimal signa-to-noise ratio.

Parameters
valuesigna-to-noise ratio.

Definition at line 44 of file JExperiment.hh.

45 {
46 get_snr() = value;
47 }

◆ check() [1/5]

static bool JASTRONOMY::JExperiment::check ( const double s,
const double b )
inlinestaticinherited

Check validity of signal and background.

Parameters
ssignal
bbackground compare significance expectation for 1 bin with cut value
Returns
true if signal and backgroud are valid; else false

Definition at line 58 of file JExperiment.hh.

59 {
60 return (s > 0.0 && b > 0.0 && (s+s*s)/(b+b*b) >= getSNR()); //E(S^2) / E(B^2) for Poisson distribution
61 }
JASTRONOMY::JExperiment::getSNR
static double getSNR()
Get minimal signa-to-noise ratio.
Definition JExperiment.hh:33

◆ check() [2/5]

static bool JASTRONOMY::JExperiment::check ( const TAxis * ha,
const TAxis * hb )
inlinestaticinherited

Check histogram bins.

Parameters
hahistogram axis
hbhistogram axis
Returns
true if same binning; else false

Definition at line 71 of file JExperiment.hh.

72 {
73 return (ha->GetNbins() == hb->GetNbins() &&
74 ha->GetXmin() == hb->GetXmin() &&
75 ha->GetXmax() == hb->GetXmax());
76 }

◆ check() [3/5]

static bool JASTRONOMY::JExperiment::check ( const TH1 & ha,
const TH1 & hb )
inlinestaticinherited

Check histogram bins.

Parameters
hahistogram
hbhistogram
Returns
true if same binning; else false

Definition at line 85 of file JExperiment.hh.

86 {
87 return check(ha.GetXaxis(), hb.GetXaxis());
88 }

◆ check() [4/5]

static bool JASTRONOMY::JExperiment::check ( const TH2 & ha,
const TH2 & hb )
inlinestaticinherited

Check histogram bins.

Parameters
hahistogram
hbhistogram
Returns
true if same binning; else false

Definition at line 98 of file JExperiment.hh.

99 {
100 return (check(ha.GetXaxis(), hb.GetXaxis()) &&
101 check(ha.GetYaxis(), hb.GetYaxis()));
102 }

◆ check() [5/5]

static bool JASTRONOMY::JExperiment::check ( const TH3 & ha,
const TH3 & hb )
inlinestaticinherited

Check histogram bins.

Parameters
hahistogram
hbhistogram
Returns
true if same binning; else false

Definition at line 112 of file JExperiment.hh.

113 {
114 return (check(ha.GetXaxis(), hb.GetXaxis()) &&
115 check(ha.GetYaxis(), hb.GetYaxis()) &&
116 check(ha.GetZaxis(), hb.GetZaxis()));
117 }

◆ get_snr()

static double & JASTRONOMY::JExperiment::get_snr ( )
inlinestaticprivateinherited

Get minimal signa-to-noise ratio.

Returns
signa-to-noise ratio.

Definition at line 125 of file JExperiment.hh.

126 {
127 static double value = 0.0;
128
129 return value;
130 }

◆ put() [1/2]

void JASTRONOMY::JAspera::put ( const double s,
const double b )
inlineinherited

Put signal and background to list of pre-computed N/S values.

Parameters
ssignal
bbackground

Definition at line 44 of file JAspera.hh.

46 {
47 push_back(b/s);
48
49 ws += s;
50 }
JASTRONOMY::JAspera::ws
double ws
total signal strength
Definition JAspera.hh:276

◆ put() [2/2]

void JASTRONOMY::JAspera::put ( const size_t n,
const double s,
const double b )
inlineinherited

Put signal and background to list of pre-computed N/S values.

Parameters
ndata
ssignal
bbackground

Definition at line 60 of file JAspera.hh.

63 {
64 for (size_t i = 0; i != n; ++i) {
65 push_back(b/s);
66 }
67
68 ws += s;
69 }
JTOOLS::n
const int n
Definition JPolint.hh:791

◆ getLikelihood()

double JASTRONOMY::JAspera::getLikelihood ( const double p) const
inlineinherited

Get likelihood for given signal strength.

Parameters
psignal strength
Returns
likelihood

Definition at line 78 of file JAspera.hh.

79 {
80 double y = -p * ws;
81
82 for (const double i : static_cast<const std::vector<double>&>(*this)) {
83 y += log1p(p/i);
84 }
85
86 return y;
87 }

◆ getDerivative()

double JASTRONOMY::JAspera::getDerivative ( const double p) const
inlineinherited

Get derivative of likelihood for given signal strength.

Parameters
psignal strength
Returns
derivative of likelihood

Definition at line 96 of file JAspera.hh.

97 {
98 double y = -ws;
99
100 for (const double i : static_cast<const std::vector<double>&>(*this)) {
101 y += 1.0 / (p + i);
102 }
103
104 return y;
105 }

◆ operator()()

fit_type JASTRONOMY::JAspera::operator() ( const bool ns = false) const
inlineinherited

Fit signal strength.

Parameters
nsallow for negative signal
Returns
result

Definition at line 114 of file JAspera.hh.

115 {
116 using namespace std;
117
118 if (this->empty()) {
119
120 // nothing to be done
121
122 return { 0.0, 0.0 };
123
124 } else if (this->size() == 1 ) {
125
126 // analytical solution
127
128 const double x = 1.0/ws - (*this)[0];
129
130 if (x > 0.0 || ns)
131 return { getLikelihood(x), x };
132 else
133 return { 0.0, 0.0 };
134 }
135
136 double x1 = 0.0;
137 double x2 = 0.0;
138
139 double f1 = getDerivative(0.0); // discriminator between positive and negative signal
140 double f2 = 0.0;
141
142 if (f1 == 0.0) {
143
144 return { 0.0, 0.0 };
145
146 } else if (f1 > 0.0) { // positive signal
147
148 x1 = 0.0; // lower limit corresponds to no signal
149 x2 = (double) this->size() / ws; // upper limit corresponds to no background (i.e. all N/S = 0)
150
151 f2 = getDerivative(x2);
152
153 } else if (ns) { // negative signal
154
155 x2 = 0.0; // upper limit corresponds to no signal
156 x1 = -(*this)[0]; // lower limit corresponds to largest negated N/S ratio
157
158 for (const double i : static_cast<const std::vector<double>&>(*this)) {
159 if (-i > x1) {
160 x1 = -i;
161 }
162 }
163
164 x1 += EPSILON; // offset
165
166 f2 = f1;
167 f1 = getDerivative(x1);
168
169 } else {
170
171 return { 0.0, 0.0 };
172 }
173
174 // Ridder's method
175
176 while (x2 - x1 > EPSILON) {
177
178 const double xm = 0.5 * (x1 + x2);
179 const double fm = getDerivative(xm);
180
181 const double s = sqrt(fm*fm - f1*f2);
182
183 if (s == 0.0) {
184 break;
185 }
186
187 const double xn = xm + (xm - x1) * fm/s;
188 const double fn = getDerivative(xn);
189
190 if (fn == 0.0) {
191 return { getLikelihood(xn), xn };
192 }
193
194 if (signbit(fn) != signbit(fm)) {
195
196 x1 = xm;
197 f1 = fm;
198 x2 = xn;
199 f2 = fn;
200
201 } else {
202
203 if (signbit(fn)) {
204
205 x2 = xn;
206 f2 = fn;
207
208 } else {
209
210 x1 = xn;
211 f1 = fn;
212 }
213 }
214 }
215
216 const double x = 0.5 * (x1 + x2);
217
218 return { getLikelihood(x), x };
219 }
JASTRONOMY::JAspera::getLikelihood
double getLikelihood(const double p) const
Get likelihood for given signal strength.
Definition JAspera.hh:78
JASTRONOMY::JAspera::EPSILON
static constexpr double EPSILON
precision determination of signal strength
Definition JAspera.hh:26
JASTRONOMY::JAspera::getDerivative
double getDerivative(const double p) const
Get derivative of likelihood for given signal strength.
Definition JAspera.hh:96

◆ getTestStatisticForUpperLimit()

double JASTRONOMY::JAspera::getTestStatisticForUpperLimit ( const double ps) const
inlineinherited

Get test statistic for given signal strength.

See formula 16 in this reference.

Parameters
pssignal strength
Returns
test statistic

Definition at line 229 of file JAspera.hh.

230 {
231 const fit_type result = (*this)(true);
232
233 if (result.signal <= 0.0)
234 return 0.0 - this->getLikelihood(ps);
235 else if (result.signal <= ps)
236 return result.likelihood - this->getLikelihood(ps);
237 else
238 return 0.0;
239 }

◆ getSignal()

double JASTRONOMY::JAspera::getSignal ( ) const
inlineinherited

Get total signal strength.

Returns
signal strength

Definition at line 247 of file JAspera.hh.

248 {
249 return ws;
250 }

◆ setSignal()

void JASTRONOMY::JAspera::setSignal ( const double wS)
inlineinherited

Set signal strength.

Parameters
wSsignal strength

Definition at line 258 of file JAspera.hh.

259 {
260 ws = wS;
261 }

◆ addSignal()

void JASTRONOMY::JAspera::addSignal ( const double wS)
inlineinherited

Add signal strength.

Parameters
wSsignal strength

Definition at line 269 of file JAspera.hh.

270 {
271 ws += wS;
272 }

Member Data Documentation

◆ remnant

struct JASTRONOMY::JRealExperiment::remnant_type JASTRONOMY::JRealExperiment::remnant
protected

◆ EPSILON

constexpr double JASTRONOMY::JAspera::EPSILON = 1.0e-3
staticconstexprinherited

precision determination of signal strength

Definition at line 26 of file JAspera.hh.

◆ ws

double JASTRONOMY::JAspera::ws = 0.0
protectedinherited

total signal strength

Definition at line 276 of file JAspera.hh.

The documentation for this struct was generated from the following file:
Generated by doxygen 1.10.0
