Event with vertex. More...

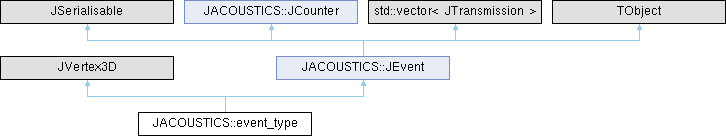

Inheritance diagram for JACOUSTICS::event_type:

Public Member Functions
	event_type ()
	Default constructor.

	event_type (const JEvent &event)
	Copy constructor.

	event_type (const JVertex3D &vertex, const JEvent &event)
	Constructor.

double	getQ () const
	Get average quality.

const int	getDetectorID () const
	Get detector identifier.

int	getOverlays () const
	Get number of overlayed events.

int	getID () const
	Get emitter identifier.

void	merge (const JEvent &event)
	Merge event.

virtual JReader &	read (JReader &in) override
	Read from input.

virtual JWriter &	write (JWriter &out) const override
	Write to output.

	ClassDefOverride (JEvent, 4)

int	getCounter () const
	Get counter.

	ClassDefNV (JCounter, 1)

Static Public Member Functions
template<class T >
static void	overlap (T p, T q, const double Tmax_s)
	Empty overlapping events.

Static Public Attributes
static double	TOA_s = std::numeric_limits<double>::max()
	start time of data

Protected Attributes
int	detid

int	overlays

int	id

int	counter

Friends
std::ostream &	operator<< (std::ostream &out, const event_type &object)
	Write event to output stream.

Detailed Description

Event with vertex.

Definition at line 140 of file JAcousticsTriggerProcessor.cc.

Constructor & Destructor Documentation

◆ event_type() [1/3]

JACOUSTICS::event_type::event_type ( )

inline

Default constructor.

Definition at line 147 of file JAcousticsTriggerProcessor.cc.

                 :
      JVertex3D(),
      JEvent()
    {}

◆ event_type() [2/3]

JACOUSTICS::event_type::event_type ( const JEvent & event )

inline

Copy constructor.

Parameters

event event

Definition at line 158 of file JAcousticsTriggerProcessor.cc.

                                    :
      JVertex3D(),
      JEvent(event)
    {}

◆ event_type() [3/3]

JACOUSTICS::event_type::event_type	(	const JVertex3D &	vertex,
		const JEvent &	event )

inline

Constructor.

Parameters

vertex	vertex
event	event

Definition at line 170 of file JAcousticsTriggerProcessor.cc.

                                       :
      JVertex3D(vertex),
      JEvent(event)
    {}

Member Function Documentation

◆ getQ()

double JACOUSTICS::event_type::getQ ( ) const

inline

Get average quality.

Returns: quality

Definition at line 182 of file JAcousticsTriggerProcessor.cc.

    {
      double Q = 0.0;

      if (!this->empty()) {

        for (const_iterator i = this->begin(); i != this->end(); ++i) {
          Q += i->getQ();
        }

        Q /= this->size();
      }

      return Q;
    }

◆ getDetectorID()

const int JACOUSTICS::JEvent::getDetectorID ( ) const

inlineinherited

Get detector identifier.

Returns: detector identifier.

Definition at line 129 of file JEvent.hh.

    {
      return detid;
    }

◆ getOverlays()

int JACOUSTICS::JEvent::getOverlays ( ) const

inlineinherited

Get number of overlayed events.

Returns: overlays

Definition at line 140 of file JEvent.hh.

    {
      return overlays;
    }

◆ getID()

int JACOUSTICS::JEvent::getID ( ) const

inlineinherited

Get emitter identifier.

Returns: identifier

Definition at line 151 of file JEvent.hh.

    {
      return id;
    }

◆ merge()

void JACOUSTICS::JEvent::merge ( const JEvent & event )

inlineinherited

Merge event.

It is assumed that the transmissions in both events are ordered according the default less-than operator.

Parameters

event event

Definition at line 165 of file JEvent.hh.

    {
      using namespace std;

      vector<JTransmission> buffer;

      const_iterator __hit1 = this ->begin();
      const_iterator __end1 = this ->end();

      const_iterator __hit2 = event.begin();
      const_iterator __end2 = event.end();

      buffer.resize(this->size() + event.size());

      iterator out = buffer.begin();

      while (__hit1 != __end1 && __hit2 != __end2) {

        if        (*__hit1 < *__hit2) {

          *out = *__hit1;
          ++__hit1;

        } else if (*__hit2 < *__hit1) {

          *out = *__hit2;
          ++__hit2;

        } else {

          *out  = *__hit1;

          ++__hit1;
          ++__hit2;
        }

        ++out;
      }

      // append remaining hits from either set

      out = copy(__hit1, __end1, out);
      out = copy(__hit2, __end2, out);

      buffer.resize(distance(buffer.begin(), out));

      this->swap(buffer);

      ++overlays;
    }

◆ overlap()

template<class T >

static void JACOUSTICS::JEvent::overlap	(	T	p,
		T	q,
		const double	Tmax_s )

inlinestaticinherited

Empty overlapping events.

The events should be time sorted on input.
The time window applies to the difference between the first transmission of an event and the last transmission of the previous event.

Parameters

p	begin of events
q	end of events
Tmax_s	time window [s]

Definition at line 247 of file JEvent.hh.

    {
      for (T __q = p, __p = __q++; __p != q && __q != q; __p = __q++) {

        if (!__p->empty()                                            &&
            !__q->empty()                                            &&
            __q->begin()->getToE() < __p->rbegin()->getToE() + Tmax_s) {

          __p->clear();                            // clear first

          for (__p = __q++; __p != q && __q != q; __p = __q++) {

            if (__q->begin()->getToE() < __p->rbegin()->getToE() + Tmax_s)
              __p->clear();                        // clear intermediate
            else
              break;
          }

          __p->clear();                            // clear last
        }
      }
    }

◆ read()

virtual JReader & JACOUSTICS::JEvent::read ( JReader & in )

inlineoverridevirtualinherited

Read from input.

Parameters

in reader

Returns: reader

Definition at line 326 of file JEvent.hh.

    {
      in >> static_cast<JCounter&>(*this);
      in >> this->detid;
      in >> this->overlays;
      in >> this->id;
      in >> static_cast<std::vector<JTransmission>&>(*this);

      return in;
    }

◆ write()

virtual JWriter & JACOUSTICS::JEvent::write ( JWriter & out ) const

inlineoverridevirtualinherited

Write to output.

Parameters

out writer

Returns: writer

Definition at line 344 of file JEvent.hh.

    {
      out << static_cast<const JCounter&>(*this);
      out << this->detid;
      out << this->overlays;
      out << this->id;
      out << static_cast<const std::vector<JTransmission>&>(*this);

      return out;
    }

◆ ClassDefOverride()

JACOUSTICS::JEvent::ClassDefOverride	(	JEvent	,
		4	)

inherited

◆ getCounter()

int JACOUSTICS::JCounter::getCounter ( ) const

inlineinherited

Get counter.

Returns: counter

Definition at line 50 of file JCounter.hh.

    {
      return counter;
    }

◆ ClassDefNV()

JACOUSTICS::JCounter::ClassDefNV	(	JCounter	,
		1	)

inherited

Friends And Related Symbol Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		const event_type &	object )

friend

Write event to output stream.

Parameters

out	output stream

Returns: object event; output stream

Definition at line 206 of file JAcousticsTriggerProcessor.cc.

    {
      using namespace std;

      return out << setw(3)    << object.getID()                  << ' '
                 << FIXED(9,3) << object.getT() - TOA_s << " [s]" << ' '
                 << setw(4)    << object.size()                   << ' '
                 << FIXED(9,2) << object.getQ()                   << ' '
                 << object.getPosition();
    }

Member Data Documentation

◆ TOA_s

double JACOUSTICS::event_type::TOA_s = std::numeric_limits<double>::max()

static

start time of data

Set start time of data.

Definition at line 217 of file JAcousticsTriggerProcessor.cc.

◆ detid

int JACOUSTICS::JEvent::detid

protectedinherited

Definition at line 358 of file JEvent.hh.

◆ overlays

int JACOUSTICS::JEvent::overlays

protectedinherited

Definition at line 359 of file JEvent.hh.

◆ id

int JACOUSTICS::JEvent::id

protectedinherited

Definition at line 360 of file JEvent.hh.

◆ counter

int JACOUSTICS::JCounter::counter

protectedinherited

Definition at line 88 of file JCounter.hh.

The documentation for this struct was generated from the following file:

JAcousticsTriggerProcessor.cc
