JACOUSTICS::JHit Struct Reference

Acoustics hit. More...

#include <JHit.hh>

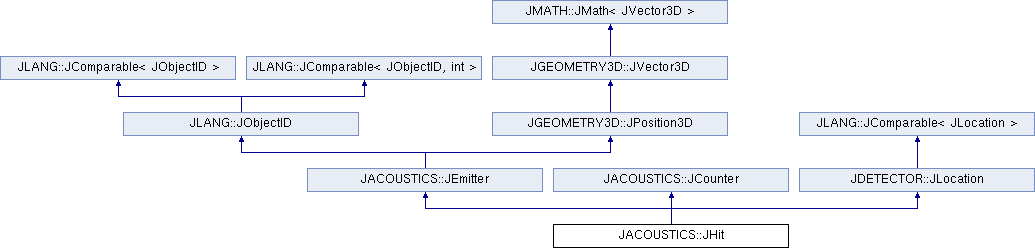

Inheritance diagram for JACOUSTICS::JHit:

Public Member Functions
	JHit ()
	Default constructor.
	JHit (const JEmitter &emitter, const JCounter &counter, const JLocation &location, const double toa_s, const double sigma_s, const double weight)
	Constructor.
JEKey	getEKey () const
	Get emitter hash key of this hit.
double	getValue () const
	Get expectation value of time-of-arrival.
double	getSigma () const
	Get resolution of time-of-arrival.
double	getWeight () const
	Get weight.
const JEmitter &	getEmitter () const
	Get emitter.
int	getCounter () const
	Get counter.
	ClassDefNV (JCounter, 1)

Protected Attributes
double	toa
double	sigma
double	weight
int	counter

Friends
std::ostream &	operator<< (std::ostream &out, const JHit &hit)
	Write hit to output stream.

Detailed Description

Acoustics hit.

Definition at line 31 of file JHit.hh.

Constructor & Destructor Documentation

JHit() [1/2]

JACOUSTICS::JHit::JHit ( )

inline

Default constructor.

Definition at line 39 of file JHit.hh.

    {}

JHit() [2/2]

JACOUSTICS::JHit::JHit ( const JEmitter & emitter, const JCounter & counter, const JLocation & location, const double toa_s, const double sigma_s, const double weight )

inline

Constructor.

Parameters

emitter	emitter
counter	counter
location	receiver location
toa_s	time-of-arrival [s]
sigma_s	resolution [s]
weight	weight

Definition at line 53 of file JHit.hh.

                                  :
      JEmitter(emitter),
      JCounter(counter),
      JLocation(location),
      toa(toa_s),
      sigma(sigma_s),
      weight(weight)
    {}

Member Function Documentation

getEKey()

JEKey JACOUSTICS::JHit::getEKey ( ) const

inline

Get emitter hash key of this hit.

Returns

hash key

Definition at line 73 of file JHit.hh.

    {
      return JEKey(getID(), getCounter());
    }

getValue()

double JACOUSTICS::JHit::getValue ( ) const

inline

Get expectation value of time-of-arrival.

Returns

time-of-arrival [s]

Definition at line 84 of file JHit.hh.

    {
      return toa;
    }

getSigma()

double JACOUSTICS::JHit::getSigma ( ) const

inline

Get resolution of time-of-arrival.

Returns

resulution [s]

Definition at line 95 of file JHit.hh.

    {
      return sigma;
    }

getWeight()

double JACOUSTICS::JHit::getWeight ( ) const

inline

Get weight.

Returns

weight

Definition at line 106 of file JHit.hh.

    {
      return weight;
    }

getEmitter()

const JEmitter & JACOUSTICS::JEmitter::getEmitter ( ) const

inlineinherited

Get emitter.

Returns

emitter

Definition at line 57 of file JEmitter.hh.

    {
      return static_cast<const JEmitter&>(*this);
    }

getCounter()

int JACOUSTICS::JCounter::getCounter ( ) const

inlineinherited

Get counter.

Returns

counter

Definition at line 50 of file JCounter.hh.

    {
      return counter;
    }

ClassDefNV()

JACOUSTICS::JCounter::ClassDefNV ( JCounter , 1  )

inherited

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream & out, const JHit & hit )

friend

Write hit to output stream.

Parameters

out	output stream
hit	hit

Returns

output stream

Definition at line 119 of file JHit.hh.

    {
      using namespace std;
      using namespace JPP;

      out << setw(3)     << hit.getID()      << ' '
          << setw(3)     << hit.getCounter() << ' '
          << getLabel(hit.getLocation())
          << FIXED(20,5) << hit.getValue()   << ' '
          << FIXED(9,6)  << hit.getSigma()   << ' '
          << FIXED(6,2)  << hit.getWeight();

      return out;
    }

Member Data Documentation

toa

double JACOUSTICS::JHit::toa

protected

Definition at line 136 of file JHit.hh.

sigma

double JACOUSTICS::JHit::sigma

protected

Definition at line 137 of file JHit.hh.

weight

double JACOUSTICS::JHit::weight

protected

Definition at line 138 of file JHit.hh.

counter

int JACOUSTICS::JCounter::counter

protectedinherited

Definition at line 88 of file JCounter.hh.

---

The documentation for this struct was generated from the following file:

• JHit.hh
