JACOUSTICS::JGEOMETRY::JDetector Struct Reference

Detector geometry. More...

#include <JGeometry.hh>

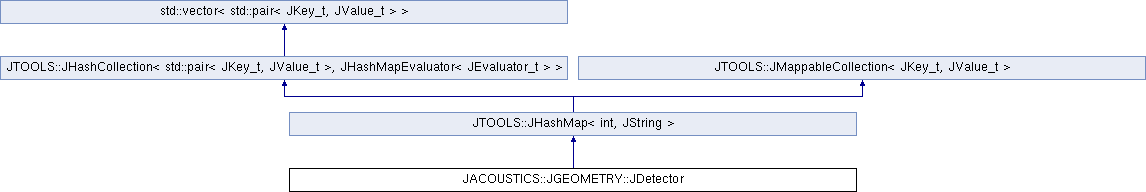

Inheritance diagram for JACOUSTICS::JGEOMETRY::JDetector:

Classes
struct	module_type
	Auxiliary data structure for module location and position. More...

Public Member Functions
	JDetector ()
	Default constructor.
	JDetector (const JDETECTOR::JDetector &detector, const std::vector< JHydrophone > &hydrophones=std::vector< JHydrophone >())
	Constructor.
bool	hasString (int string) const
	Check if this detector has given string.
bool	hasLocation (const JLocation &location) const
	Check if this detector has given location.

Friends
std::ostream &	operator<< (std::ostream &out, const JDetector &detector)
	Write detector parameters to output stream.

Detailed Description

Detector geometry.

Definition at line 499 of file JGeometry.hh.

Constructor & Destructor Documentation

JDetector() [1/2]

JACOUSTICS::JGEOMETRY::JDetector::JDetector ( )

inline

Default constructor.

Definition at line 505 of file JGeometry.hh.

      {}

JDetector() [2/2]

JACOUSTICS::JGEOMETRY::JDetector::JDetector ( const JDETECTOR::JDetector & detector, const std::vector< JHydrophone > & hydrophones = std::vector<JHydrophone>() )

inline

Constructor.

Note that the positions of the base modules correspond to the reference position of the string.
As a consequence, a base module (i.e. floor = 0) is required for each string.
Missing base modules should therefore be added beforehand (e.g. using application JDetectorDB.cc).

Note that if the position of a hydrophone is not available, it is assumed that there is no hydrophone on that string.
If the position of the hydrophone is manually set, the corresponding parameter JString::has_hydrophone should be set to true.

Parameters

detector	detector
hydrophones	container with data of hydrophones

Definition at line 524 of file JGeometry.hh.

      {
        using namespace std;
        using namespace JPP;

        map<int, vector<module_type> > buffer;                            // string -> modules

        for (JDETECTOR::JDetector::const_iterator module = detector.begin(); module != detector.end(); ++module) {
          buffer[module->getString()].push_back(module_type(module->getLocation(), module->getPosition()));
        }

        for (map<int, vector<module_type> >::iterator i = buffer.begin(); i != buffer.end(); ++i) {

          sort(i->second.begin(), i->second.end(), make_comparator(&module_type::getFloor));

          if (i->second[0].getFloor() == 0) {

            JString& string = (*this)[i->first];

            vector<module_type>::iterator p = i->second.begin();

            ++p;

            string = JGEOMETRY::JString(i->second[0].getPosition(), getMechanics(i->first), p, i->second.end());

            try {

              string.hydrophone     = getPosition(hydrophones.begin(),
                                                  hydrophones.end(),
                                                  make_predicate(&JHydrophone::getString, i->first));

              string.has_hydrophone = true;
            }
            catch(const exception&) {
              string.has_hydrophone = false;
            }

          } else {

            THROW(JNoValue, "No floor 0 in string " << i->first << "; use e.g. JDetectorDB -W.");
          }
        }
      }

Member Function Documentation

hasString()

bool JACOUSTICS::JGEOMETRY::JDetector::hasString ( int string ) const

inline

Check if this detector has given string.

Parameters

string

string

Returns

true if string present; else false

Definition at line 576 of file JGeometry.hh.

      {
        return this->has(string);
      }

hasLocation()

bool JACOUSTICS::JGEOMETRY::JDetector::hasLocation ( const JLocation & location ) const

inline

Check if this detector has given location.

Parameters

location

location

Returns

true if location present; else false

Definition at line 588 of file JGeometry.hh.

      {
        return this->hasString(location.getString()) && (*this)[location.getString()].hasFloor(location.getFloor());
      }

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream & out, const JDetector & detector )

friend

Write detector parameters to output stream.

Parameters

out	output stream
detector	detector

Returns

output stream

Definition at line 601 of file JGeometry.hh.

      {
        using namespace std;

        for (JDetector::const_iterator i = detector.begin(); i != detector.end(); ++i) {
          out << setw(4) << i->first << endl << i->second;
        }

        return out;
      }

---

The documentation for this struct was generated from the following file:

• JGeometry.hh
