JAANET::JEvtWeightHelper Struct Reference

Helper class for event weighing. More...

#include <JEvtWeightHelper.hh>

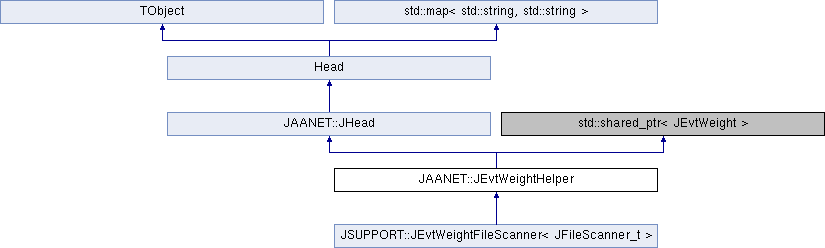

Inheritance diagram for JAANET::JEvtWeightHelper:

Public Types
typedef std::shared_ptr< JEvtWeight >	pointer_type

Public Member Functions
	JEvtWeightHelper ()
	Default constructor.
	JEvtWeightHelper (const JEvtWeight &weighter)
	Constructor.
const char *const	getName () const
	Get name.
void	configure (const JEvtWeight &weighter)
	Configuration.
bool	check (const JHead &header) const
	Check if a given header is consistent with this event weighter.
JEvtWeight &	getEvtWeighter () const
	Get reference to event-weighter.
void	add (const JHead &header)
	Add header.
double	getWeight (const Evt &evt) const
	Get weight of given event.
double	getNormalisation () const
	Get event-weight normalisation.
double	getNormalisation (const Evt &evt) const
	Get event-weight normalisation.
Vec	coord_origin () const
	Get coordinate origin.
const JHead &	getHeader () const
	Get header.
JHead &	getHeader ()
	Get header.
void	setHeader (const JHead &header)
	Set header.
void	createUUID ()
	Create UUID if not already set.
template<class T >
bool	is_valid (T JHead::*pd) const
	Check validity of given data member in JHead.
template<class T >
const_iterator	pull (T JHead::*pd) const
	Pull given data member from Head.
template<class T >
iterator	pull (T JHead::*pd)
	Pull given data member from Head.
template<class T >
void	push (T JHead::*pd)
	Push given data member to Head.
void	push ()
	Push all data members to Head.
template<class T >
void	erase (T JHead::*pd)
	Reset and remove given data member from Head.
JHead	getMatch (const JHead &header) const
	Get matching fields.
size_t	getNumberOfMatches (const JHead &header) const
	Get number of matching fields.
bool	match (const JHead &header) const
	Test match of headers.
bool	less (const JHead &header) const
	Comparison of headers.
std::istream &	read (std::istream &in)
	Read header from input.
std::ostream &	write (std::ostream &out) const
	Write header to output.
std::ostream &	print (std::ostream &out) const
	Print header to output.
	ClassDef (JHead, 5)
	ClassDef (Head, 2)
bool	have_line (std::string key) const
	Check availability of data with the given key.
const std::string &	get_line (std::string key) const
	Get data with the given key.
std::string &	get_line (std::string key)
	Get data with the given key.
std::vector< std::string >	matching_keys (const std::string &tag) const
	In case of duplicate keys, they are internally stored in the map with a suffix "_n".
std::vector< std::string >	get_lines (const std::string &tag) const
	Get all data compatible with the given key.
std::string	set_line (std::string tag, std::string line, bool ensure_unique=true)
	Set data with the given tag.
std::string	get_field (std::string key, int idx) const
	Get data with the given key at given index.
std::string	get_field (std::string key, std::string field) const
	Get data with the given key at given field.
int	get_index_of_field (std::string key, std::string field) const
	Get index of data with the given key at given field.
void	set_field (std::string key, std::string field, std::string value)
	Set data with the given key at given field.
double	ngen () const
	Get the number of generated events needed for computing event rates.
double	daq_livetime () const
	Get the the live time provided by the DAQ sytstem (=number of processed timeslices * frametime).
double	mc_livetime () const
	Get the Monte Carlo live time.
Vec	translate () const
	Get coordinate translation.

Static Public Member Functions
template<class T >
static bool	is_valid (const T &object)
	Check validity of given data member in JHead.
static const size_t	getMaximumNumberOfMatches ()
	Get maximum number of matching header fields.
static JLANG::JEquationParameters &	getEquationParameters ()
	Get equation parameters corresponding to Monte Carlo ASCII format, i.e:
static void	setEquationParameters (const JLANG::JEquationParameters &equation)
	Set equation parameters.
static const std::map< std::string, std::vector< std::string > > &	_hdr_dict ()
	Get internal description of the known lines in header.
static void	actionAtFileOpen (int version)
	Action method at file open.

Public Attributes
JAANET::start_run	start_run
JUUID	UUID
JAANET::XSecFile	XSecFile
JAANET::drawing	drawing
std::vector< JAANET::detector >	detector
JAANET::muon_desc_file	muon_desc_file
JAANET::target	target
std::vector< JAANET::physics >	physics
std::vector< JAANET::simul >	simul
JAANET::calibration	calibration
JAANET::cut_primary	cut_primary
JAANET::cut_seamuon	cut_seamuon
JAANET::cut_in	cut_in
JAANET::cut_nu	cut_nu
JAANET::spectrum	spectrum
JAANET::can	can
JAANET::fixedcan	fixedcan
JAANET::genvol	genvol
JAANET::coord_origin	coord_origin
JAANET::genhencut	genhencut
JAANET::norma	norma
JAANET::livetime	livetime
JAANET::seabottom	seabottom
JAANET::depth	depth
JAANET::DAQ	DAQ
JAANET::K40	K40
JAANET::tgen	tgen
JAANET::time_interval	time_interval
JAANET::primary	primary
std::vector< JAANET::flux >	flux
JAANET::end_event	end_event

Static Public Attributes
static int	ROOT_IO_VERSION = -1
	Streamer version as obtained from ROOT file.

Static Private Member Functions
template<class T >
static bool	match (const T &first, const T &second)
	Test match.
template<class T >
static bool	match (const std::vector< T > &first, const std::vector< T > &second)
	Test is containers match.
template<class T >
static bool	match (const JHead &first, const JHead &second, T JHead::*pd)
	Test match of given data member of headers.
template<class T >
static bool	less (const T &first, const T &second)
	Comparison.
template<class T >
static bool	less (const std::vector< T > &first, const std::vector< T > &second)
	Comparison of containers.

Private Attributes
int	counter
	Counter to check how many headers have been added.

Detailed Description

Helper class for event weighing.

Definition at line 25 of file JEvtWeightHelper.hh.

Member Typedef Documentation

pointer_type

typedef std::shared_ptr<JEvtWeight> JAANET::JEvtWeightHelper::pointer_type

Definition at line 29 of file JEvtWeightHelper.hh.

Constructor & Destructor Documentation

JEvtWeightHelper() [1/2]

JAANET::JEvtWeightHelper::JEvtWeightHelper ( )

inline

Default constructor.

Definition at line 34 of file JEvtWeightHelper.hh.

                       :
      counter(0)
    {}

JEvtWeightHelper() [2/2]

JAANET::JEvtWeightHelper::JEvtWeightHelper ( const JEvtWeight & weighter )

inline

Constructor.

Parameters

weighter

event weighter

Definition at line 44 of file JEvtWeightHelper.hh.

                                                 :
      counter(0)
    {
      this->configure(weighter);
    }

Member Function Documentation

getName()

const char *const JAANET::JEvtWeightHelper::getName ( ) const

inline

Get name.

Returns

name

Definition at line 56 of file JEvtWeightHelper.hh.

    {
      return getEvtWeighter().getName();
    }

configure()

void JAANET::JEvtWeightHelper::configure ( const JEvtWeight & weighter )

inline

Configuration.

Parameters

weighter

event weighter

Definition at line 67 of file JEvtWeightHelper.hh.

    {
      counter = 0;

      reset(weighter.clone());
    }

check()

bool JAANET::JEvtWeightHelper::check ( const JHead & header ) const

inline

Check if a given header is consistent with this event weighter.

Parameters

header

header

Returns

true if header is consistent with this event weighter; else false.

Definition at line 81 of file JEvtWeightHelper.hh.

    {
      const JEvtWeight& weighter = getEvtWeighter();

      return weighter.check(header);
    }

getEvtWeighter()

JEvtWeight & JAANET::JEvtWeightHelper::getEvtWeighter ( ) const

inline

Get reference to event-weighter.

Returns

reference to event-weighter

Definition at line 94 of file JEvtWeightHelper.hh.

    {
      using namespace JPP;

      if (static_cast<const JEvtWeightHelper&>(*this)) {
        return *(this->get());
      } else {
        THROW(JNullPointerException, "JEvtWeightHelper::getEvtWeighter(): Event-weighter is not set.");
      }
    }

add()

void JAANET::JEvtWeightHelper::add ( const JHead & header )

inline

Add header.

Parameters

header

header

Definition at line 111 of file JEvtWeightHelper.hh.

    {
      using namespace JPP;

      JEvtWeight& weighter = getEvtWeighter();

      if (check(header)) {

        if (counter == 0) {
          JHead::setHeader(header);
        } else {
          JHead::add(header);
        }

        ++counter;

        weighter.configure(getHeader());

      } else {

        THROW(JValueOutOfRange, "JEvtWeightHelper::add(): headers do not match.");
      }
    }

getWeight()

double JAANET::JEvtWeightHelper::getWeight ( const Evt & evt ) const

inline

Get weight of given event.

Parameters

evt

event

Returns

weight [Hz]

Definition at line 142 of file JEvtWeightHelper.hh.

    {
      const JEvtWeight& weighter = getEvtWeighter();

      return weighter.getWeight(evt);
    }

getNormalisation() [1/2]

double JAANET::JEvtWeightHelper::getNormalisation ( ) const

inline

Get event-weight normalisation.

Returns

event-weight normalisation

Definition at line 155 of file JEvtWeightHelper.hh.

    {
      const JEvtWeight& weighter = getEvtWeighter();

      return weighter.getNormalisation();
    }

getNormalisation() [2/2]

double JAANET::JEvtWeightHelper::getNormalisation ( const Evt & evt ) const

inline

Get event-weight normalisation.

Parameters

evt

event

Returns

event-weight normalisation

Definition at line 169 of file JEvtWeightHelper.hh.

    {
      const JEvtWeight& weighter = getEvtWeighter();

      return weighter.getNormalisation(evt);
    }

coord_origin()

Vec Head::coord_origin ( ) const

inlineinherited

Get coordinate origin.

Returns

position

Definition at line 397 of file Head.hh.

  {
    return Vec( stod( get_field("coord_origin", "x") ),
                stod( get_field("coord_origin", "y") ),
                stod( get_field("coord_origin", "z") ));
  }

getHeader() [1/2]

const JHead & JAANET::JHead::getHeader ( ) const

inlineinherited

Get header.

Returns

header

Definition at line 1270 of file JHead.hh.

    {
      return static_cast<const JHead&>(*this);
    }

getHeader() [2/2]

JHead & JAANET::JHead::getHeader ( )

inlineinherited

Get header.

Returns

header

Definition at line 1281 of file JHead.hh.

    {
      return static_cast<JHead&>(*this);
    }

setHeader()

void JAANET::JHead::setHeader ( const JHead & header )

inlineinherited

Set header.

Parameters

header

header

Definition at line 1292 of file JHead.hh.

    {
      static_cast<JHead&>(*this) = header;
    }

createUUID()

void JAANET::JHead::createUUID ( )

inlineinherited

Create UUID if not already set.

Definition at line 1301 of file JHead.hh.

    {
      if (!is_valid(&JHead::UUID)) {
        this->UUID = JUUID::rndm();
        this->push(&JHead::UUID);
      }
    }

is_valid() [1/2]

template<class T >

bool JAANET::JHead::is_valid ( T JHead::* pd ) const

inlineinherited

Check validity of given data member in JHead.

The validity is defined by the presence of the name of the data member in the underlying map.

Parameters

pd	pointer to data member

Returns

true if valid; else false

Definition at line 1319 of file JHead.hh.

    {
      return (this->pull(pd) != this->end());
    }

is_valid() [2/2]

template<class T >

static bool JAANET::JHead::is_valid ( const T & object )

inlinestaticinherited

Check validity of given data member in JHead.

The validity is defined by difference between actual and default value.

Parameters

object

object

Returns

true if valid; else false

Definition at line 1334 of file JHead.hh.

    {
      static const T value;

      return (object.less(value) || value.less(object));
    }

pull() [1/2]

template<class T >

const_iterator JAANET::JHead::pull ( T JHead::* pd ) const

inlineinherited

Pull given data member from Head.

Parameters

pd	pointer to data member

Returns

iterator of Head

Definition at line 1349 of file JHead.hh.

    {
      return this->find(JROOT::getDataMember(pd)->GetName());
    }

pull() [2/2]

template<class T >

iterator JAANET::JHead::pull ( T JHead::* pd )

inlineinherited

Pull given data member from Head.

Parameters

pd	pointer to data member

Returns

iterator of Head

Definition at line 1362 of file JHead.hh.

    {
      return this->find(JROOT::getDataMember(pd)->GetName());
    }

push() [1/2]

template<class T >

void JAANET::JHead::push ( T JHead::* pd )

inlineinherited

Push given data member to Head.

Parameters

pd	pointer to data member

Definition at line 1374 of file JHead.hh.

    {
      (*this)[JROOT::getDataMember(pd)->GetName()] = "";
    }

push() [2/2]

void JAANET::JHead::push ( )

inherited

Push all data members to Head.

Definition at line 29 of file JHead.cc.

  {
    using namespace std;
    using namespace JPP;

    JRootReadableClass cls(*this);

    unique_ptr<TIterator> i(cls.getClass()->GetListOfDataMembers()->MakeIterator());

    for (const TDataMember* p; (p = (const TDataMember*) i->Next()) != NULL; ) {
      if (!JRoot::is_static(*p)) {
        if (this->count(p->GetName()) == 0) {
          (*this)[p->GetName()] = "";
        }
      }
    }
  }

erase()

template<class T >

void JAANET::JHead::erase ( T JHead::* pd )

inlineinherited

Reset and remove given data member from Head.

Parameters

pd	pointer to data member

Definition at line 1392 of file JHead.hh.

    {
      this->*pd = T();

      iterator p = this->pull(pd);

      if (p != this->end()) {
        static_cast<Head*>(this)->erase(p);
      }
    }

getMatch()

JHead JAANET::JHead::getMatch ( const JHead & header ) const

inlineinherited

Get matching fields.

Parameters

header

header

Returns

header with matching fields

Definition at line 1410 of file JHead.hh.

    {
#define IF_MATCH(A, B, C, D)                    \
      if (match(B,C,D)) { A.push(D);  }         \
      else              { A.erase(D); }

      JHead buffer(*this);

      buffer.clear();

      buffer.createUUID();

      IF_MATCH(buffer, *this, header, &JHead::cut_primary);
      IF_MATCH(buffer, *this, header, &JHead::cut_seamuon);
      IF_MATCH(buffer, *this, header, &JHead::cut_in);
      IF_MATCH(buffer, *this, header, &JHead::cut_nu);
      IF_MATCH(buffer, *this, header, &JHead::simul);
      IF_MATCH(buffer, *this, header, &JHead::physics);
      IF_MATCH(buffer, *this, header, &JHead::spectrum);
      IF_MATCH(buffer, *this, header, &JHead::can);
      IF_MATCH(buffer, *this, header, &JHead::fixedcan);
      IF_MATCH(buffer, *this, header, &JHead::genvol);
      IF_MATCH(buffer, *this, header, &JHead::coord_origin);

      IF_MATCH(buffer, *this, header, &JHead::norma);
      IF_MATCH(buffer, *this, header, &JHead::livetime);

      IF_MATCH(buffer, *this, header, &JHead::seabottom);
      IF_MATCH(buffer, *this, header, &JHead::depth);
      IF_MATCH(buffer, *this, header, &JHead::tgen);
      //IF_MATCH(buffer, *this, header, &JHead::time_interval);

      IF_MATCH(buffer, *this, header, &JHead::primary);
      IF_MATCH(buffer, *this, header, &JHead::flux);
      IF_MATCH(buffer, *this, header, &JHead::DAQ);
      IF_MATCH(buffer, *this, header, &JHead::K40);
      IF_MATCH(buffer, *this, header, &JHead::target);

      return buffer;

#undef IF_MATCH
    }

getNumberOfMatches()

size_t JAANET::JHead::getNumberOfMatches ( const JHead & header ) const

inlineinherited

Get number of matching fields.

Parameters

header

header

Returns

number of matching header fields

Definition at line 1460 of file JHead.hh.

    {
      const JHead head = getMatch(header);

      return head.size();
    }

match() [1/4]

bool JAANET::JHead::match ( const JHead & header ) const

inlineinherited

Test match of headers.

N.B.: If header 1 matches header 2, this does not necessarily imply header 2 matches header 1;
This is because header 1 may contain only a subsection of the fields of header 2 and vice versa.
E.g.: Header1:

       <tt>Header2</tt>:\n

            start_run: 1
            UUID: 09ee8c7a-4160-467e-99cf-0fee788e23d7
            primary: 16
            end_event:

In this case Header1.match(Header2) returns true, but not the other way around.

Parameters

header

second header

Returns

true if all header fields match; else false

Definition at line 1492 of file JHead.hh.

    {
      return getNumberOfMatches(header) == getNumberOfMatches(*this);
    }

match() [2/4]

template<class T >

static bool JAANET::JHead::match ( const T & first, const T & second )

inlinestaticprivateinherited

Test match.

Parameters

first	first object
second	second object

Returns

true if matches; else false

Definition at line 1732 of file JHead.hh.

    {
      return first.match(second);
    }

match() [3/4]

template<class T >

static bool JAANET::JHead::match ( const std::vector< T > & first, const std::vector< T > & second )

inlinestaticprivateinherited

Test is containers match.

It is assumed that the containers are ordered in the same way.

Parameters

first	first object
second	second object

Returns

true if matches; else false

Definition at line 1777 of file JHead.hh.

    {
      for (size_t i = 0; i != first.size() && i != second.size(); ++i) {
        if (!match(first[i], second[i])) {
          return false;
        }
      }

      return first.size() == second.size();
    }

match() [4/4]

template<class T >

static bool JAANET::JHead::match ( const JHead & first, const JHead & second, T JHead::* pd )

inlinestaticprivateinherited

Test match of given data member of headers.

Parameters

first	first header
second	second header
pd	pointer to data member

Returns

true if matches; else false

Definition at line 1799 of file JHead.hh.

    {
      return (first .is_valid(pd) &&
              second.is_valid(pd) &&
              match(first.*pd, second.*pd));
    }

less() [1/3]

bool JAANET::JHead::less ( const JHead & header ) const

inlineinherited

Comparison of headers.

Parameters

header

header

Returns

true if this header less than given header; else false

Definition at line 1504 of file JHead.hh.

    {
#define RETURN_IF_DIFFERENT(A, B)               \
      if (less(A,B)) { return true;  }          \
      if (less(B,A)) { return false; }

      // compare physics

      RETURN_IF_DIFFERENT(this->physics,     header.physics);

      // compare simulation

      RETURN_IF_DIFFERENT(this->simul,       header.simul);

      // compare generation data

      RETURN_IF_DIFFERENT(this->primary,     header.primary);
      RETURN_IF_DIFFERENT(this->flux,        header.flux);
      RETURN_IF_DIFFERENT(this->spectrum,    header.spectrum);
      RETURN_IF_DIFFERENT(this->cut_primary, header.cut_primary);
      RETURN_IF_DIFFERENT(this->cut_seamuon, header.cut_seamuon);
      RETURN_IF_DIFFERENT(this->cut_in,      header.cut_in);
      RETURN_IF_DIFFERENT(this->cut_nu,      header.cut_nu);
      RETURN_IF_DIFFERENT(this->genvol,      header.genvol);
      RETURN_IF_DIFFERENT(this->target,      header.target);

      // compare compatibility

      if (is_valid(this->livetime) == is_valid(header.livetime)  &&
          is_valid(this->DAQ)      == is_valid(header.DAQ)       &&
          is_valid(this->K40)      == is_valid(header.K40))      {
        return false;
      }

      THROW(JException, "JHead::less() headers do not compare.");

#undef RETURN_IF_DIFFERENT
    }

less() [2/3]

template<class T >

static bool JAANET::JHead::less ( const T & first, const T & second )

inlinestaticprivateinherited

Comparison.

Parameters

first	first object
second	second object

Returns

true if first less than second; else false

Definition at line 1717 of file JHead.hh.

    {
      return first.less(second);
    }

less() [3/3]

template<class T >

static bool JAANET::JHead::less ( const std::vector< T > & first, const std::vector< T > & second )

inlinestaticprivateinherited

Comparison of containers.

It is assumed that the containers are ordered in the same way.

Parameters

first	first object
second	second object

Returns

true if first is less than second; else false

Definition at line 1748 of file JHead.hh.

    {
      if (first.size() == second.size()) {

        for (size_t i = 0; i != first.size(); ++i) {
          if (less(first[i], second[i])) {
            return true;
          }
        }

        return false;

      } else {

        return first.size() < second.size();
      }
    }

getMaximumNumberOfMatches()

static const size_t JAANET::JHead::getMaximumNumberOfMatches ( )

inlinestaticinherited

Get maximum number of matching header fields.

Returns

maximum number of matching header fields

Definition at line 1639 of file JHead.hh.

    {
      static JHead header;

      header.push();

      static const size_t value = header.getNumberOfMatches(header);

      return value;
    }

getEquationParameters()

static JLANG::JEquationParameters & JAANET::JHead::getEquationParameters ( )

inlinestaticinherited

Get equation parameters corresponding to Monte Carlo ASCII format, i.e:

   <key>: <value> [<value>]*
   <key>: <value> [<value>]*

Returns

equation parameters

Definition at line 1660 of file JHead.hh.

    {
      static JLANG::JEquationParameters parameters(":", "\n", "", "");

      return parameters;
    }

setEquationParameters()

static void JAANET::JHead::setEquationParameters ( const JLANG::JEquationParameters & equation )

inlinestaticinherited

Set equation parameters.

Parameters

equation

equation parameters

Definition at line 1673 of file JHead.hh.

    {
      getEquationParameters() = equation;
    }

read()

std::istream & JAANET::JHead::read ( std::istream & in )

inherited

Read header from input.

Parameters

in	input stream

Returns

input stream

Definition at line 54 of file JHead.cc.

  {
    using namespace std;
    using namespace JPP;

    JStringStream is(in);

    if (getFileStatus(is.str().c_str())) {
      is.load();
    }

    JRootReader reader(is, JHead::getEquationParameters(), JAAnetDictionary::getInstance());

    JRootReadableClass cls(*this);

    for (JEquation equation; reader >> equation && equation.getKey() != end_event::Class_Name(); ) {

      JRedirectString redirect(reader, equation.getValue());

      const JRootReadableClass abc = cls.find(equation.getKey().c_str());

      if (abc.is_valid()) {
        reader.getObject(abc);
      }

      (*this)[equation.getKey()] = equation.getValue();
    }

    return in;
  }

write()

std::ostream & JAANET::JHead::write ( std::ostream & out ) const

inherited

Write header to output.

Parameters

out	output stream

Returns

output stream

Definition at line 92 of file JHead.cc.

  {
    using namespace std;
    using namespace JPP;

    JRootWriter writer(out, JHead::getEquationParameters(), JAAnetDictionary::getInstance());

    JRootWritableClass cls(*this);

    unique_ptr<TIterator> i(cls.getClass()->GetListOfDataMembers()->MakeIterator());

    for (const TDataMember* p; (p = (const TDataMember*) i->Next()) != NULL; ) {
      if (!JRoot::is_static(*p)) {
        if (this->find(p->GetName()) != this->end()                    ||
            cls.get(*p)              == JRootClass(&JHead::start_run)  ||
            cls.get(*p)              == JRootClass(&JHead::end_event)) {
          writer.put(p->GetName(), cls.get(*p), true);
        }
      }
    }

    return out << flush;
  }

print()

std::ostream & JAANET::JHead::print ( std::ostream & out ) const

inherited

Print header to output.

Parameters

out	output stream

Returns

output stream

Definition at line 123 of file JHead.cc.

  {
    using namespace std;
    using namespace JPP;

    JRootWriter writer(out, JHead::getEquationParameters(), JAAnetDictionary::getInstance());

    JRootWritableClass cls(*this);

    unique_ptr<TIterator> i(cls.getClass()->GetListOfDataMembers()->MakeIterator());

    pair<string, JRootWritableClass> end_event("", this->end_event);

    for (const TDataMember* p; (p = (const TDataMember*) i->Next()) != NULL; ) {
      if (!JRoot::is_static(*p)) {
        if (cls.get(*p) != JRootClass(&JHead::end_event))
          writer.put(p->GetName(), cls.get(*p), true);
        else
          end_event = make_pair(p->GetName(), cls.get(*p));
      }
    }

    for (JHead::const_iterator i = this->begin(); i != this->end(); ++i) {
      if (!cls.find(i->first.c_str()).is_valid()) {
        writer.put(i->first, i->second);
      }
    }

    writer.put(end_event.first, end_event.second, true);

    return out << flush;
  }

ClassDef() [1/2]

JAANET::JHead::ClassDef ( JHead , 5  )

inherited

ClassDef() [2/2]

Head::ClassDef ( Head , 2  )

inherited

have_line()

bool Head::have_line ( std::string key ) const

inlineinherited

Check availability of data with the given key.

Parameters

key

key

Returns

true if data are available; else false

Definition at line 77 of file Head.hh.

  {
    return count( key ) != 0;
  }

get_line() [1/2]

const std::string & Head::get_line ( std::string key ) const

inlineinherited

Get data with the given key.

This method throws a run-time exception if no data are available.

Parameters

key

key

Returns

data

Definition at line 89 of file Head.hh.

  {
    return this->at(key);
  }

get_line() [2/2]

std::string & Head::get_line ( std::string key )

inlineinherited

Get data with the given key.

This method throws a run-time exception if no data are available.

Parameters

key

key

Returns

data

Definition at line 101 of file Head.hh.

  {
    return this->at(key);
  }

matching_keys()

std::vector< std::string > Head::matching_keys ( const std::string & tag ) const

inlineinherited

In case of duplicate keys, they are internally stored in the map with a suffix "_n".

This function returns all the keys that start with 'key' and end in "_n", with n an integer

Parameters

tag	tag (without suffix)

Definition at line 115 of file Head.hh.

  {
    std::vector< std::string> r;

    auto match = [&] (const std::string & key) {

      if (key == tag) return true;

      if ( key.find( tag ) != 0 ) return false;

      // what is left should be of the form _d(ddd)
      std::string left = key.substr( tag.length(), key.length() );
      if (left.length() < 2 || left[0] != '_' ) return false ;
      for ( unsigned i = 1; i < left.length(); i++ )
      {
        if (!std::isdigit( left[i] )) return false ;
      }
      return true;
    };

    for ( auto& p : *this )
    {
      if ( match( p.first ) ) r.push_back( p.first );
    }

    return r;
  }

get_lines()

std::vector< std::string > Head::get_lines ( const std::string & tag ) const

inlineinherited

Get all data compatible with the given key.

This means all data that is internally stored with "key_n", with n an integer
This method throws a run-time exception if no data are available.

Parameters

tag	tag (without suffix)

Returns

data

Definition at line 154 of file Head.hh.

  {
    std::vector< std::string > r;

    for ( auto& key : matching_keys( tag ) ) {
      r.push_back( get_line( key ) );
    }

    return r;
  }

set_line()

std::string Head::set_line ( std::string tag, std::string line, bool ensure_unique = true )

inlineinherited

Set data with the given tag.

The function will return the actual key that is used internally to store the result, which is equal to the tag with an optional "_n" added to ensure uniqueness.

Parameters

tag	tag
line	data
ensure_unique	add '_n' (with n an integer) to the tag if it would overwrite an existing key.

Definition at line 176 of file Head.hh.

  {
    std::string k = tag;

    if (ensure_unique)
      for (int i = 1; find(k) != end() ; i++)
      {
        k = tag + "_" + std::to_string(i);
      }

    std::map<std::string, std::string>::operator[]( k ) = line;
    return k;
  }

get_field() [1/2]

std::string Head::get_field ( std::string key, int idx ) const

inlineinherited

Get data with the given key at given index.

This method throws a run-time exception if no data are available.

Parameters

key	key
idx	index

Returns

data

Definition at line 198 of file Head.hh.

  {
    using namespace std;

    vector<string> v = splitstring( get_line(key) );

    if ( idx < 0 || idx >= int ( v.size() ) )
    {
      THROW(Exception, "Cannot find word number " << idx << " in line " << get_line(key) << " for key: " << key);
    }
    return v[idx];
  }

get_field() [2/2]

std::string Head::get_field ( std::string key, std::string field ) const

inlineinherited

Get data with the given key at given field.

This method throws a run-time exception if no field is available.

Note that this method uses the dictionary define in method Head::_hdr_dict.

Parameters

key	key
field	field

Returns

data

Definition at line 240 of file Head.hh.

  {
    int idx = get_index_of_field(key, field);

    if ( idx == -1 )
    {
      THROW(Exception, "Failed to find" << key << " " << field);
    }

    return get_field( key, idx );
  }

get_index_of_field()

int Head::get_index_of_field ( std::string key, std::string field ) const

inlineinherited

Get index of data with the given key at given field.

Note that this method uses the dictionary define in method Head::_hdr_dict.

Parameters

key	key
field	field

Returns

index (-1 if not present)

Definition at line 220 of file Head.hh.

  {
    auto& d = _hdr_dict();
    if ( d.count(key) == 0 ) return -1;
    auto v = d.at(key);
    auto i = std::find (v.begin(), v.end(), field );
    if (i == v.end()) return -1;
    return i - v.begin();
  }

set_field()

void Head::set_field ( std::string key, std::string field, std::string value )

inlineinherited

Set data with the given key at given field.

This method throws a run-time exception if no field available.

Note that this method uses the dictionary define in method Head::_hdr_dict.

Parameters

key	key
field	field
value	vakue

Definition at line 263 of file Head.hh.

  {
    using namespace std;

    if ( field == "" ) get_line( key ) = value;

    int idx = get_index_of_field( key, field );

    if ( idx < 0 )
    {
      THROW(Exception, "GFailed to find field in header line: " << key << " " << field);
    }

    vector<string> vals = splitstring( get_line( key ) );

    // if the fields before do not exist, add padding
    while ( int( vals.size() ) <= idx ) vals.push_back("0");

    vals[idx] = value;
    ostringstream ss;

    for (unsigned i = 0; i < vals.size() ; i++ )
    {
      ss << vals[i];
      if ( i != vals.size() - 1) ss << " ";
    }
    set_line( key, ss.str() );

  }

_hdr_dict()

static const std::map< std::string, std::vector< std::string > > & Head::_hdr_dict ( )

inlinestaticinherited

Get internal description of the known lines in header.

Returns

internal dictionary

Definition at line 315 of file Head.hh.

  {
    using namespace std;

    // map with, for each tag (key), a vector of field-names

    static map<string, vector<string> > r;
    if ( r.size() > 0 ) return r;

    string desc =
      "DAQ:livetime\n"
      "cut_primary cut_seamuon cut_in cut_nu:Emin Emax cosTmin cosTmax\n"
      "generator physics simul:program version date time\n"
      "seed:program level iseed\n"
      "PM1_type_area:type area TTS\n"
      "PDF:i1 i2\n"
      "model:interaction muon scattering numberOfEnergyBins\n"
      "can:zmin zmax r\n"
      "genvol:zmin zmax r volume numberOfEvents\n"
      "merge:time gain\n"
      "coord_origin:x y z\n"
      "translate:x y z\n"
      "genhencut:gDir Emin\n"
      "k40:rate time\n"               // note lower-case k
      "K40:livetime\n"                // note capital K
      "norma:primaryFlux numberOfPrimaries\n"
      "livetime:numberOfSeconds errorOfSeconds\n"
      "flux:type key file_1 file_2\n"
      "spectrum:alpha\n"
      "fixedcan:xcenter ycenter zmin zmax radius\n"
      "start_run:run_id";

    for ( auto line : splitstring(desc, '\n') )
    {
      auto v = splitstring( line, ':');

      vector< string > fields = splitstring( v[1] );
      for ( auto key : splitstring( v[0] ) )
      {
        r[key] = fields;
      }
    }
    return r;
  }

ngen()

double Head::ngen ( ) const

inlineinherited

Get the number of generated events needed for computing event rates.

Returns

number of events

Definition at line 366 of file Head.hh.

  {
    return stod ( get_field("genvol", "numberOfEvents") );
  }

daq_livetime()

double Head::daq_livetime ( ) const

inlineinherited

Get the the live time provided by the DAQ sytstem (=number of processed timeslices * frametime).

Returns

live time [s]

Definition at line 376 of file Head.hh.

  {
    return stod ( get_field("DAQ", "livetime") );
  }

mc_livetime()

double Head::mc_livetime ( ) const

inlineinherited

Get the Monte Carlo live time.

Returns

live time [s]

Definition at line 387 of file Head.hh.

  {
    return stod ( get_field("livetime", "numberOfSeconds") );
  }

translate()

Vec Head::translate ( ) const

inlineinherited

Get coordinate translation.

Returns

translation

Definition at line 409 of file Head.hh.

  {
    return Vec( stod( get_field("translate", "x") ),
                stod( get_field("translate", "y") ),
                stod( get_field("translate", "z") ));
  }

actionAtFileOpen()

static void Head::actionAtFileOpen ( int version )

inlinestaticinherited

Action method at file open.

Parameters

version

version

Definition at line 423 of file Head.hh.

  {
    ROOT_IO_VERSION = version;
  }

Member Data Documentation

counter

int JAANET::JEvtWeightHelper::counter

private

Counter to check how many headers have been added.

Definition at line 179 of file JEvtWeightHelper.hh.

start_run

JAANET::start_run JAANET::JHead::start_run

inherited

Definition at line 1601 of file JHead.hh.

UUID

JUUID JAANET::JHead::UUID

inherited

Definition at line 1602 of file JHead.hh.

XSecFile

JAANET::XSecFile JAANET::JHead::XSecFile

inherited

Definition at line 1603 of file JHead.hh.

drawing

JAANET::drawing JAANET::JHead::drawing

inherited

Definition at line 1604 of file JHead.hh.

detector

std::vector<JAANET::detector> JAANET::JHead::detector

inherited

Definition at line 1605 of file JHead.hh.

muon_desc_file

JAANET::muon_desc_file JAANET::JHead::muon_desc_file

inherited

Definition at line 1606 of file JHead.hh.

target

JAANET::target JAANET::JHead::target

inherited

Definition at line 1607 of file JHead.hh.

physics

std::vector<JAANET::physics> JAANET::JHead::physics

inherited

Definition at line 1608 of file JHead.hh.

simul

std::vector<JAANET::simul> JAANET::JHead::simul

inherited

Definition at line 1609 of file JHead.hh.

calibration

JAANET::calibration JAANET::JHead::calibration

inherited

Definition at line 1610 of file JHead.hh.

cut_primary

JAANET::cut_primary JAANET::JHead::cut_primary

inherited

Definition at line 1611 of file JHead.hh.

cut_seamuon

JAANET::cut_seamuon JAANET::JHead::cut_seamuon

inherited

Definition at line 1612 of file JHead.hh.

cut_in

JAANET::cut_in JAANET::JHead::cut_in

inherited

Definition at line 1613 of file JHead.hh.

cut_nu

JAANET::cut_nu JAANET::JHead::cut_nu

inherited

Definition at line 1614 of file JHead.hh.

spectrum

JAANET::spectrum JAANET::JHead::spectrum

inherited

Definition at line 1615 of file JHead.hh.

can

JAANET::can JAANET::JHead::can

inherited

Definition at line 1616 of file JHead.hh.

fixedcan

JAANET::fixedcan JAANET::JHead::fixedcan

inherited

Definition at line 1617 of file JHead.hh.

genvol

JAANET::genvol JAANET::JHead::genvol

inherited

Definition at line 1618 of file JHead.hh.

coord_origin

JAANET::coord_origin JAANET::JHead::coord_origin

inherited

Definition at line 1619 of file JHead.hh.

genhencut

JAANET::genhencut JAANET::JHead::genhencut

inherited

Definition at line 1620 of file JHead.hh.

norma

JAANET::norma JAANET::JHead::norma

inherited

Definition at line 1621 of file JHead.hh.

livetime

JAANET::livetime JAANET::JHead::livetime

inherited

Definition at line 1622 of file JHead.hh.

seabottom

JAANET::seabottom JAANET::JHead::seabottom

inherited

Definition at line 1623 of file JHead.hh.

depth

JAANET::depth JAANET::JHead::depth

inherited

Definition at line 1624 of file JHead.hh.

DAQ

JAANET::DAQ JAANET::JHead::DAQ

inherited

Definition at line 1625 of file JHead.hh.

K40

JAANET::K40 JAANET::JHead::K40

inherited

Definition at line 1626 of file JHead.hh.

tgen

JAANET::tgen JAANET::JHead::tgen

inherited

Definition at line 1627 of file JHead.hh.

time_interval

JAANET::time_interval JAANET::JHead::time_interval

inherited

Definition at line 1628 of file JHead.hh.

primary

JAANET::primary JAANET::JHead::primary

inherited

Definition at line 1629 of file JHead.hh.

flux

std::vector<JAANET::flux> JAANET::JHead::flux

inherited

Definition at line 1630 of file JHead.hh.

end_event

JAANET::end_event JAANET::JHead::end_event

inherited

Definition at line 1631 of file JHead.hh.

ROOT_IO_VERSION

int Head::ROOT_IO_VERSION = -1

staticinherited

Streamer version as obtained from ROOT file.

Definition at line 428 of file Head.hh.

---

The documentation for this struct was generated from the following file:

• JEvtWeightHelper.hh
