KM3NETDAQ::JDAQTimeslice Class Reference

Data time slice. More...

#include <JDAQTimeslice.hh>

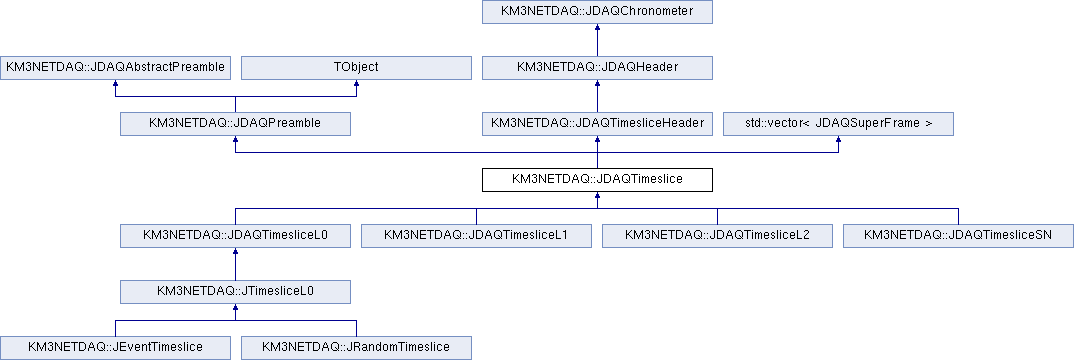

Inheritance diagram for KM3NETDAQ::JDAQTimeslice:

Public Member Functions
	JDAQTimeslice ()
	Default constructor.
	JDAQTimeslice (const JDAQChronometer &chronometer)
	Constructor.
	JDAQTimeslice (const JDAQEvent &event, const bool snapshot=true)
	Constructor.
	JDAQTimeslice (const JDAQEvent &event, const JDAQSummaryslice &summary, const bool snapshot=true)
	Constructor.
virtual	~JDAQTimeslice ()
	Virtual destructor.
void	clear ()
	Clear data.
JDAQTimeslice &	operator= (const JDAQTimeslice &timeslice)
	Assignment operator.
JDAQTimeslice &	add (const JDAQTimeslice &timeslice)
	Add another timeslice.
std::ostream &	print (std::ostream &out, const bool lpr=false) const
	Print DAQ Timeslice.
	ClassDef (JDAQTimeslice, 4)
	ClassDef (JDAQPreamble, 1)
int	getLength () const
	Get length.
int	getDataType () const
	Get data type.
	ClassDefNV (JDAQAbstractPreamble, 1)
const JDAQTimesliceHeader &	getDAQTimesliceHeader () const
	Get DAQ time slice header.
	ClassDef (JDAQTimesliceHeader, 2)
	ClassDef (JDAQHeader, 2)
	ClassDef (JDAQChronometer, 3)
const JDAQHeader &	getDAQHeader () const
	Get DAQ header.
void	setDAQHeader (const JDAQHeader &header)
	Set DAQ header.
const JDAQChronometer &	getDAQChronometer () const
	Get DAQ chronometer.
void	setDAQChronometer (const JDAQChronometer &chronometer)
	Set DAQ chronometer.
int	getDetectorID () const
	Get detector identifier.
int	getRunNumber () const
	Get run number.
int	getFrameIndex () const
	Get frame index.
JDAQUTCExtended	getTimesliceStart () const
	Get start of timeslice.
void	setRunNumber (const int run)
	Set run number.
void	setFrameIndex (const int frame_index)
	Set frame index.
void	setTimesliceStart (const JDAQUTCExtended &timeslice_start)
	Set timeslice start time.

Static Public Member Functions
template<class T >
static JDAQPreamble	getDAQPreamble (const T &object)
	Get DAQ preamble.

Protected Attributes
int	length
int	type
int	detector_id
int	run
int	frame_index
JDAQUTCExtended	timeslice_start

Friends
size_t	getSizeof (const JDAQTimeslice &)
	Get size of object.
JReader &	operator>> (JReader &, JDAQTimeslice &)
	Read DAQ time slice from input.
JWriter &	operator<< (JWriter &, const JDAQTimeslice &)
	Write DAQ time slice to output.

Detailed Description

Data time slice.

Definition at line 30 of file JDAQTimeslice.hh.

Constructor & Destructor Documentation

JDAQTimeslice() [1/4]

KM3NETDAQ::JDAQTimeslice::JDAQTimeslice ( )

inline

Default constructor.

Definition at line 44 of file JDAQTimeslice.hh.

                    :
      JDAQPreamble(JDAQType<JDAQTimeslice>()),
      JDAQTimesliceHeader(),
      std::vector<JDAQSuperFrame>()
    {}

JDAQTimeslice() [2/4]

KM3NETDAQ::JDAQTimeslice::JDAQTimeslice ( const JDAQChronometer & chronometer )

inline

Constructor.

Parameters

chronometer

DAQ chronometer

Definition at line 56 of file JDAQTimeslice.hh.

                                                      :
      JDAQPreamble(JDAQType<JDAQTimeslice>()),
      JDAQTimesliceHeader(chronometer),
      std::vector<JDAQSuperFrame>()
    {}

JDAQTimeslice() [3/4]

KM3NETDAQ::JDAQTimeslice::JDAQTimeslice	(	const JDAQEvent &	event,
		const bool	snapshot = true )

Constructor.

Parameters

event	DAQ event
snapshot	use shapshot hits (else use triggered hits)

Definition at line 22 of file externals/km3net-dataformat/src/JDAQTimeslice.cc.

                                                          :
    JDAQPreamble(JDAQType<JDAQTimeslice>()),
    JDAQTimesliceHeader(event.getDAQChronometer()),
    std::vector<JDAQSuperFrame>()
  {
    using namespace std;

    map<int, vector<JDAQHit> > buffer;

    if (snapshot) {

      for (vector<JDAQSnapshotHit>::const_iterator  hit = event.begin<JDAQSnapshotHit> (); hit != event.end<JDAQSnapshotHit> (); ++hit) {
        buffer[hit->getModuleID()].push_back(*hit);
      }

    } else {

      for (vector<JDAQTriggeredHit>::const_iterator hit = event.begin<JDAQTriggeredHit>(); hit != event.end<JDAQTriggeredHit>(); ++hit) {
        buffer[hit->getModuleID()].push_back(*hit);
      }
    }


    for (map<int, vector<JDAQHit> >::iterator entry = buffer.begin(); entry != buffer.end(); ++entry) {

      sort(entry->second.begin(), entry->second.end());

      this->push_back(JDAQSuperFrame(JDAQSuperFrameHeader(getDAQChronometer(), entry->first)));

      this->rbegin()->add(entry->second.size(), entry->second.data());
    }
  }

JDAQTimeslice() [4/4]

KM3NETDAQ::JDAQTimeslice::JDAQTimeslice	(	const JDAQEvent &	event,
		const JDAQSummaryslice &	summary,
		const bool	snapshot = true )

Constructor.

Parameters

event	DAQ event
summary	summary
snapshot	use shapshot hits (else use triggered hits)

Definition at line 64 of file externals/km3net-dataformat/src/JDAQTimeslice.cc.

                                                                 :
    JDAQPreamble(JDAQType<JDAQTimeslice>()),
    JDAQTimesliceHeader(event.getDAQChronometer()),
    std::vector<JDAQSuperFrame>()
  {
    using namespace std;
    using namespace JPP;

    map<int, vector<JDAQHit> > buffer;

    if (snapshot) {

      for (vector<JDAQSnapshotHit>::const_iterator  hit = event.begin<JDAQSnapshotHit> (); hit != event.end<JDAQSnapshotHit> (); ++hit) {
        buffer[hit->getModuleID()].push_back(*hit);
      }

    } else {

      for (vector<JDAQTriggeredHit>::const_iterator hit = event.begin<JDAQTriggeredHit>(); hit != event.end<JDAQTriggeredHit>(); ++hit) {
        buffer[hit->getModuleID()].push_back(*hit);
      }
    }

    map<int, JDAQFrameStatus> sumo;

    for (JDAQSummaryslice::const_iterator i = summary.begin(); i != summary.end(); ++i) {
      sumo[i->getModuleID()] = i->getDAQFrameStatus();
    }

    for (map<int, vector<JDAQHit> >::iterator entry = buffer.begin(); entry != buffer.end(); ++entry) {

      sort(entry->second.begin(), entry->second.end());

      JDAQFrameStatus status = JDAQFrameStatus::getInstance();

      map<int, JDAQFrameStatus>::const_iterator ps = sumo.find(entry->first);

      if (ps != sumo.end()) {
        status = ps->second;
      }

      this->push_back(JDAQSuperFrame(JDAQSuperFrameHeader(getDAQChronometer(), entry->first, status)));

      this->rbegin()->add(entry->second.size(), entry->second.data());
    }
  }

~JDAQTimeslice()

virtual KM3NETDAQ::JDAQTimeslice::~JDAQTimeslice ( )

inlinevirtual

Virtual destructor.

Definition at line 88 of file JDAQTimeslice.hh.

    {
      clear();
    }

Member Function Documentation

clear()

void KM3NETDAQ::JDAQTimeslice::clear ( )

inline

Clear data.

Definition at line 97 of file JDAQTimeslice.hh.

    {
      for (iterator i = this->begin(); i != this->end(); ++i) {
        i->clear();
      }

      std::vector<JDAQSuperFrame>::clear();
    }

operator=()

JDAQTimeslice & KM3NETDAQ::JDAQTimeslice::operator= ( const JDAQTimeslice & timeslice )

inline

Assignment operator.

Parameters

timeslice

timeslice

Returns

this timeslice

Definition at line 113 of file JDAQTimeslice.hh.

    {
      clear();

      setDAQChronometer(timeslice.getDAQChronometer());

      for (const_iterator i = timeslice.begin(); i != timeslice.end(); ++i) {
        push_back(*i);
      }

      return *this;
    }

add()

JDAQTimeslice & KM3NETDAQ::JDAQTimeslice::add ( const JDAQTimeslice & timeslice )

inline

Add another timeslice.

Parameters

timeslice

timeslice

Returns

this timeslice

Definition at line 133 of file JDAQTimeslice.hh.

    {
      using namespace std;

      map<JDAQModuleIdentifier, int> buffer;

      for (const_iterator i = this->begin(); i != this->end(); ++i) {
        buffer[i->getModuleIdentifier()] = distance(static_cast<const JDAQTimeslice&>(*this).begin(),i);
      }

      for (JDAQTimeslice::const_iterator i = timeslice.begin(); i != timeslice.end(); ++i) {

        map<JDAQModuleIdentifier, int>::const_iterator p = buffer.find(i->getModuleIdentifier());

        if (p != buffer.end()) {

          JDAQSuperFrame& frame = this->at(p->second);

          frame.add(*i);

          sort(frame.begin(), frame.end());

        } else {

          this->push_back(*i);
        }
      }

      return *this;
    }

print()

std::ostream & KM3NETDAQ::JDAQTimeslice::print ( std::ostream & out, const bool lpr = false ) const

inline

Print DAQ Timeslice.

Parameters

out	output stream
lpr	long print

Returns

output stream

Definition at line 172 of file JDAQTimeslice.hh.

    {
      using namespace std;

      out << this->ClassName() << endl;
      out << dynamic_cast<const JDAQPreamble&>   (*this) << endl;
      out << dynamic_cast<const JDAQChronometer&>(*this) << endl;

      for (JDAQTimeslice::const_iterator frame = this->begin(); frame != this->end(); ++frame) {

        out << ' ' << setw(10) << frame->getModuleID();
        out << ' ' << setw(6)  << frame->getLength();
        out << ' ' << setw(6)  << frame->getDataType();
        out << ' ' << setw(6)  << frame->getTimesliceStart();
        out << ' ' << setw(8)  << setfill('0') << hex << frame->getStatus()     << dec << setfill(' ');
        out << '|' << setw(8)  << setfill('0') << hex << frame->getFIFOStatus() << dec << setfill(' ');
        out << ' ' << setw(2)  << frame->getUDPNumberOfReceivedPackets();
        out << '/' << setw(2)  << frame->getUDPMaximalSequenceNumber();
        out << ' ' << setw(6)  << frame->size();

        if (!lpr) {

          if (!frame->empty()) {

            out << ' ' << setw(10) << frame-> begin()->getT();
            out << " ... ";
            out << ' ' << setw(10) << frame->rbegin()->getT();
          }

          out << endl;

        } else {

          out << endl;

          int n = 1;

          for (JDAQFrame::const_iterator hit = frame->begin(); hit != frame->end(); ++hit, ++n) {
            out << setw(2) << (int) hit->getPMT() << ' '
                << setw(8) << (int) hit->getT()   << ' '
                << setw(3) << (int) hit->getToT() << (n%10 == 0 ? '\n' : ' ');
          }

          out << endl;
        }
      }

      return out;
    }

ClassDef() [1/5]

KM3NETDAQ::JDAQTimeslice::ClassDef	(	JDAQTimeslice	,
		4	)

getDAQPreamble()

template<class T >

static JDAQPreamble KM3NETDAQ::JDAQPreamble::getDAQPreamble ( const T & object )

inlinestaticinherited

Get DAQ preamble.

This method should be used for binary I/O to get the actual data for the given object.
To this end, the following method should be overloaded for the corresponding data type.

   size_t  getSizeof(const T&);

Parameters

object

object

Returns

preamble

Definition at line 76 of file JDAQPreamble.hh.

    {
      static JDAQPreamble preamble;

      preamble.length = getSizeof(object);
      preamble.type   = KM3NETDAQ::getDataType<T>();

      return preamble;
    }

ClassDef() [2/5]

KM3NETDAQ::JDAQPreamble::ClassDef ( JDAQPreamble , 1  )

inherited

getLength()

int KM3NETDAQ::JDAQAbstractPreamble::getLength ( ) const

inlineinherited

Get length.

Returns

number of bytes

Definition at line 49 of file JDAQAbstractPreamble.hh.

    {
      return length;
    }

getDataType()

int KM3NETDAQ::JDAQAbstractPreamble::getDataType ( ) const

inlineinherited

Get data type.

Returns

data type

Definition at line 60 of file JDAQAbstractPreamble.hh.

    {
      return type;
    }

ClassDefNV()

KM3NETDAQ::JDAQAbstractPreamble::ClassDefNV ( JDAQAbstractPreamble , 1  )

inherited

getDAQTimesliceHeader()

const JDAQTimesliceHeader & KM3NETDAQ::JDAQTimesliceHeader::getDAQTimesliceHeader ( ) const

inlineinherited

Get DAQ time slice header.

Returns

DAQ time slice header

Definition at line 43 of file JDAQTimesliceHeader.hh.

    {
      return static_cast<const JDAQTimesliceHeader&>(*this);
    }

ClassDef() [3/5]

KM3NETDAQ::JDAQTimesliceHeader::ClassDef ( JDAQTimesliceHeader , 2  )

inherited

ClassDef() [4/5]

KM3NETDAQ::JDAQHeader::ClassDef ( JDAQHeader , 2  )

inherited

ClassDef() [5/5]

KM3NETDAQ::JDAQChronometer::ClassDef ( JDAQChronometer , 3  )

inherited

getDAQHeader()

const JDAQHeader & KM3NETDAQ::JDAQHeader::getDAQHeader ( ) const

inlineinherited

Get DAQ header.

Returns

DAQ header

Definition at line 49 of file JDAQHeader.hh.

    {
      return static_cast<const JDAQHeader&>(*this);
    }

setDAQHeader()

void KM3NETDAQ::JDAQHeader::setDAQHeader ( const JDAQHeader & header )

inlineinherited

Set DAQ header.

Parameters

header

DAQ header

Definition at line 60 of file JDAQHeader.hh.

    {
      static_cast<JDAQHeader&>(*this) = header;
    }

getDAQChronometer()

const JDAQChronometer & KM3NETDAQ::JDAQChronometer::getDAQChronometer ( ) const

inlineinherited

Get DAQ chronometer.

Returns

DAQ chronometer

Definition at line 88 of file JDAQChronometer.hh.

    {
      return static_cast<const JDAQChronometer&>(*this);
    }

setDAQChronometer()

void KM3NETDAQ::JDAQChronometer::setDAQChronometer ( const JDAQChronometer & chronometer )

inlineinherited

Set DAQ chronometer.

Parameters

chronometer

DAQ chronometer

Definition at line 99 of file JDAQChronometer.hh.

    {
      static_cast<JDAQChronometer&>(*this) = chronometer;
    }

getDetectorID()

int KM3NETDAQ::JDAQChronometer::getDetectorID ( ) const

inlineinherited

Get detector identifier.

Returns

detector identifier

Definition at line 110 of file JDAQChronometer.hh.

    {
      return detector_id;
    }

getRunNumber()

int KM3NETDAQ::JDAQChronometer::getRunNumber ( ) const

inlineinherited

Get run number.

Returns

run number

Definition at line 121 of file JDAQChronometer.hh.

    {
      return run;
    }

getFrameIndex()

int KM3NETDAQ::JDAQChronometer::getFrameIndex ( ) const

inlineinherited

Get frame index.

Returns

frame index

Definition at line 132 of file JDAQChronometer.hh.

    {
      return frame_index;
    }

getTimesliceStart()

JDAQUTCExtended KM3NETDAQ::JDAQChronometer::getTimesliceStart ( ) const

inlineinherited

Get start of timeslice.

Returns

timeslice start

Definition at line 144 of file JDAQChronometer.hh.

    {
      return timeslice_start;
    }

setRunNumber()

void KM3NETDAQ::JDAQChronometer::setRunNumber ( const int run )

inlineinherited

Set run number.

Parameters

run	run number

Definition at line 155 of file JDAQChronometer.hh.

    {
      this->run = run;
    }

setFrameIndex()

void KM3NETDAQ::JDAQChronometer::setFrameIndex ( const int frame_index )

inlineinherited

Set frame index.

Parameters

frame_index

frame index

Definition at line 166 of file JDAQChronometer.hh.

    {
      this->frame_index = frame_index;
    }

setTimesliceStart()

void KM3NETDAQ::JDAQChronometer::setTimesliceStart ( const JDAQUTCExtended & timeslice_start )

inlineinherited

Set timeslice start time.

Parameters

timeslice_start

timeslice start time

Definition at line 177 of file JDAQChronometer.hh.

    {
      this->timeslice_start = timeslice_start;
    }

Friends And Related Symbol Documentation

getSizeof

size_t getSizeof ( const JDAQTimeslice & object )

friend

Get size of object.

Parameters

object

DAQ event

Returns

number of bytes

Definition at line 25 of file JDAQTimesliceIO.hh.

  {
    int len = 0;

    len += getSizeof<JDAQPreamble>();
    len += sizeof(Version_t);
    len += getSizeof<JDAQTimesliceHeader>();

    len += sizeof(int);

    for (JDAQTimeslice::const_iterator frame = object.begin(); frame != object.end(); ++frame) {
      len += getSizeof(*frame);
    }

    return len;
  }

operator>>

JReader & operator>> ( JReader & in, JDAQTimeslice & object )

friend

Read DAQ time slice from input.

Parameters

in	reader
object	DAQ time slice

Returns

reader

Definition at line 50 of file JDAQTimesliceIO.hh.

  {
    Version_t version;

    object.clear();

    in >> static_cast<JDAQPreamble&>               (object);
    in >> version;
    in >> static_cast<JDAQTimesliceHeader&>        (object);
    in >> static_cast<std::vector<JDAQSuperFrame>&>(object);

    return in;
  }

operator<<

JWriter & operator<< ( JWriter & out, const JDAQTimeslice & object )

friend

Write DAQ time slice to output.

Parameters

out	writer
object	DAQ time slice

Returns

writer

Definition at line 72 of file JDAQTimesliceIO.hh.

  {
    out << JDAQPreamble::getDAQPreamble(object);
    out << JDAQTimeslice::Class_Version();
    out << static_cast<const JDAQTimesliceHeader&>        (object);
    out << static_cast<const std::vector<JDAQSuperFrame>&>(object);

    return out;
  }

Member Data Documentation

length

int KM3NETDAQ::JDAQAbstractPreamble::length

protectedinherited

Definition at line 69 of file JDAQAbstractPreamble.hh.

type

int KM3NETDAQ::JDAQAbstractPreamble::type

protectedinherited

Definition at line 70 of file JDAQAbstractPreamble.hh.

detector_id

int KM3NETDAQ::JDAQChronometer::detector_id

protectedinherited

Definition at line 187 of file JDAQChronometer.hh.

run

int KM3NETDAQ::JDAQChronometer::run

protectedinherited

Definition at line 188 of file JDAQChronometer.hh.

frame_index

int KM3NETDAQ::JDAQChronometer::frame_index

protectedinherited

Definition at line 189 of file JDAQChronometer.hh.

timeslice_start

JDAQUTCExtended KM3NETDAQ::JDAQChronometer::timeslice_start

protectedinherited

Definition at line 190 of file JDAQChronometer.hh.

---

The documentation for this class was generated from the following files:

• JDAQTimeslice.hh
• externals/km3net-dataformat/src/JDAQTimeslice.cc
