Detector simulation. More...

#include <JDetectorSimulator.hh>

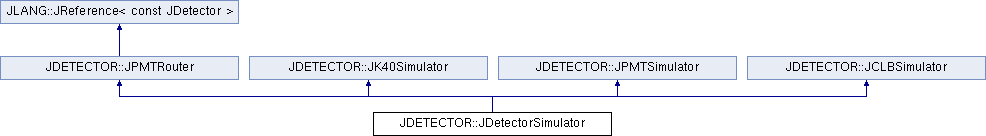

Inheritance diagram for JDETECTOR::JDetectorSimulator:

Public Types
typedef JDetector::const_iterator	const_iterator

Public Member Functions
	JDetectorSimulator (const JDetector &detector)
	Constructor.

bool	hasK40Simulator () const
	Check availability of K40 simulator.

bool	hasPMTSimulator () const
	Check availability of PMT simulator.

bool	hasCLBSimulator () const
	Check availability of CLB simulator.

const JK40Simulator &	getK40Simulator () const
	Get K40 simulator.

const JPMTSimulator &	getPMTSimulator () const
	Get PMT simulator.

const JCLBSimulator &	getCLBSimulator () const
	Get CLB simulator.

void	reset (JK40Simulator *k40Simulator)
	Reset K40 simulator.

void	reset (JPMTSimulator *pmtSimulator)
	Reset PMT simulator.

void	reset (JCLBSimulator *clbSimulator)
	Reset CLB simulator.

virtual void	generateHits (const JModule &module, const JTimeRange &period, JModuleData &output) const override
	Generate hits.

virtual void	processHits (const JPMTIdentifier &ID, const JCalibration &calibration, const JStatus &status, const JPMTData< JPMTSignal > &input, JPMTData< JPMTPulse > &output) const override
	Process hits.

virtual void	processData (const JModuleIdentifier &id, const JCLBInput &input, JDAQSuperFrame &output) const override
	Process data.

virtual void	operator() (const JModule &module, JModuleData &input, JDAQSuperFrame &output) const
	Process module data in one step.

const JPMTRouter &	getPMTRouter () const
	Get PMT router.

const JPMTAddress &	getAddress (const JObjectID &id) const
	Get address of PMT.

const JPMT &	getPMT (const JPMTAddress &address) const
	Get PMT.

const JPMT &	getPMT (const JObjectID &id) const
	Get PMT.

bool	hasPMT (const JObjectID &id) const
	Has PMT.

JPMTIdentifier	getIdentifier (const JPMTAddress &address) const
	Get identifier of PMT.

JPMTIdentifier	getIdentifier (const JObjectID &id) const
	Get identifier of PMT.

const JModule &	getModule (const JModuleAddress &address) const
	Get module.

const JModule &	getParentModule (const JObjectID &id) const
	Get parent module.

int	getParentModuleID (const JObjectID &id) const
	Get parent module identifier.

JPMTChannel	getPMTChannel (const JPMTAddress &address) const
	Get PMT channel.

JPMTChannel	getPMTChannel (const JObjectID &id) const
	Get PMT channel.

JUTMPosition	getUTMPosition (const JObjectID &id) const
	Get UTM position of given PMT identifier.

const JClass_t &	getReference () const
	Get reference to object.

JClass_t &	getReference ()
	Get reference to object.

bool	is_valid () const
	Check validity of reference.

const JClass_t *	operator-> () const
	Smart pointer.

JClass_t *	operator-> ()
	Smart pointer.

const JClass_t &	operator* () const
	Dereference operator.

JClass_t &	operator* ()
	Dereference operator.

virtual bool	hasCLB (const JModuleIdentifier &id) const
	Check if CLB exist.

Protected Attributes
std::unique_ptr< JK40Simulator >	k40Simulator

std::unique_ptr< JPMTSimulator >	pmtSimulator

std::unique_ptr< JCLBSimulator >	clbSimulator

JClass_t &	__object

Private Types
typedef JReference< const JDetector >	JReference_t

Private Member Functions
	JDetectorSimulator (const JDetectorSimulator &)
	Make copy constructor inaccesible.

JDetectorSimulator &	operator= (const JDetectorSimulator &)
	Make assignment operator inaccesible.

Private Attributes
JTOOLS::JRouter< JPMTAddress >	router

Detailed Description

Detector simulation.

This class implements the JK40Simulator, JPMTSimulator and JCLBSimulator interfaces. The implementations of these interfaces should be provided via pointers to corresponding objects.

N.B: This class owns the objects pointed to using class JLANG::JSinglePointer.

Definition at line 34 of file JDetectorSimulator.hh.

Member Typedef Documentation

◆ JReference_t

typedef JReference<const JDetector> JDETECTOR::JPMTRouter::JReference_t

privateinherited

Definition at line 39 of file JPMTRouter.hh.

◆ const_iterator

typedef JDetector::const_iterator JDETECTOR::JPMTRouter::const_iterator

inherited

Definition at line 43 of file JPMTRouter.hh.

Constructor & Destructor Documentation

◆ JDetectorSimulator() [1/2]

JDETECTOR::JDetectorSimulator::JDetectorSimulator ( const JDetectorSimulator & )

private

Make copy constructor inaccesible.

◆ JDetectorSimulator() [2/2]

JDETECTOR::JDetectorSimulator::JDetectorSimulator ( const JDetector & detector )

inline

Constructor.

Parameters

detector detector

Definition at line 59 of file JDetectorSimulator.hh.

                                                  :
      JPMTRouter(detector)
    {}

Member Function Documentation

◆ operator=()

JDetectorSimulator & JDETECTOR::JDetectorSimulator::operator= ( const JDetectorSimulator & )

private

Make assignment operator inaccesible.

◆ hasK40Simulator()

bool JDETECTOR::JDetectorSimulator::hasK40Simulator ( ) const

inline

Check availability of K40 simulator.

Returns: true if simulator available; else false

Definition at line 69 of file JDetectorSimulator.hh.

    {
      return k40Simulator.get() != NULL;
    }

◆ hasPMTSimulator()

bool JDETECTOR::JDetectorSimulator::hasPMTSimulator ( ) const

inline

Check availability of PMT simulator.

Returns: true if simulator available; else false

Definition at line 81 of file JDetectorSimulator.hh.

    {
      return pmtSimulator.get() != NULL;
    }

◆ hasCLBSimulator()

bool JDETECTOR::JDetectorSimulator::hasCLBSimulator ( ) const

inline

Check availability of CLB simulator.

Returns: true if simulator available; else false

Definition at line 92 of file JDetectorSimulator.hh.

    {
      return clbSimulator.get() != NULL;
    }

◆ getK40Simulator()

const JK40Simulator & JDETECTOR::JDetectorSimulator::getK40Simulator ( ) const

inline

Get K40 simulator.

Returns: K40 simulator

Definition at line 103 of file JDetectorSimulator.hh.

    {
      if (hasK40Simulator())
        return *k40Simulator;
      else
        THROW(JPointerException, "JDetectorSimulator: K40 simulator not avaliable.");
    }

◆ getPMTSimulator()

const JPMTSimulator & JDETECTOR::JDetectorSimulator::getPMTSimulator ( ) const

inline

Get PMT simulator.

Returns: PMT simulator

Definition at line 117 of file JDetectorSimulator.hh.

    {
      if (hasPMTSimulator())
        return *pmtSimulator;
      else
        THROW(JPointerException, "JDetectorSimulator: PMT simulator not avaliable.");
    }

◆ getCLBSimulator()

const JCLBSimulator & JDETECTOR::JDetectorSimulator::getCLBSimulator ( ) const

inline

Get CLB simulator.

Returns: CLB simulator

Definition at line 131 of file JDetectorSimulator.hh.

    {
      if (hasCLBSimulator())
        return *clbSimulator;
      else
        THROW(JPointerException, "JDetectorSimulator: CLB simulator not avaliable.");
    }

◆ reset() [1/3]

void JDETECTOR::JDetectorSimulator::reset ( JK40Simulator * k40Simulator )

inline

Reset K40 simulator.

Parameters

k40Simulator K40 simulator

Definition at line 145 of file JDetectorSimulator.hh.

    {
      this->k40Simulator.reset(k40Simulator);
    }

◆ reset() [2/3]

void JDETECTOR::JDetectorSimulator::reset ( JPMTSimulator * pmtSimulator )

inline

Reset PMT simulator.

Parameters

pmtSimulator PMT simulator

Definition at line 157 of file JDetectorSimulator.hh.

    {
      this->pmtSimulator.reset(pmtSimulator);
    }

◆ reset() [3/3]

void JDETECTOR::JDetectorSimulator::reset ( JCLBSimulator * clbSimulator )

inline

Reset CLB simulator.

Parameters

clbSimulator CLB simulator

Definition at line 168 of file JDetectorSimulator.hh.

    {
      this->clbSimulator.reset(clbSimulator);
    }

◆ generateHits()

virtual void JDETECTOR::JDetectorSimulator::generateHits	(	const JModule &	module,
		const JTimeRange &	period,
		JModuleData &	output ) const

inlineoverridevirtual

Generate hits.

Parameters

module	module
period	time window [ns]
output	background data

Implements JDETECTOR::JK40Simulator.

Definition at line 181 of file JDetectorSimulator.hh.

    {
      getK40Simulator().generateHits(module, period, output);
    }

◆ processHits()

virtual void JDETECTOR::JDetectorSimulator::processHits	(	const JPMTIdentifier &	ID,
		const JCalibration &	calibration,
		const JStatus &	status,
		const JPMTData< JPMTSignal > &	input,
		JPMTData< JPMTPulse > &	output ) const

inlineoverridevirtual

Process hits.

Parameters

ID	PMT identifier
calibration	PMT calibration
status	PMT status
input	PMT signals
output	PMT hits

Implements JDETECTOR::JPMTSimulator.

Definition at line 198 of file JDetectorSimulator.hh.

    {
      getPMTSimulator().processHits(ID, calibration, status, input, output);
    }

◆ processData()

virtual void JDETECTOR::JDetectorSimulator::processData	(	const JModuleIdentifier &	id,
		const JCLBInput &	input,
		JDAQSuperFrame &	output ) const

inlineoverridevirtual

Process data.

Parameters

id	module identifier
input	PMT data
output	CLB data

Implements JDETECTOR::JCLBSimulator.

Definition at line 215 of file JDetectorSimulator.hh.

    {
      getCLBSimulator().processData(id, input, output);
    }

◆ operator()()

virtual void JDETECTOR::JDetectorSimulator::operator()	(	const JModule &	module,
		JModuleData &	input,
		JDAQSuperFrame &	output ) const

inlinevirtual

Process module data in one step.

Parameters

module	module
input	PMT signals
output	CLB data

Definition at line 228 of file JDetectorSimulator.hh.

    {
      // PMT simulation

      JCLBInput buffer(input.size());

      for (unsigned int i = 0; i != input.size(); ++i) {

        input[i].sort();

        const JPMT& pmt = module.getPMT(i);

        processHits(JPMTIdentifier(module.getID(), i),
                    pmt.getCalibration(),
                    pmt.getStatus(),
                    input [i],
                    buffer[i]);
      }

      // CLB simulation

      processData(module, buffer, output);
    }

◆ getPMTRouter()

const JPMTRouter & JDETECTOR::JPMTRouter::getPMTRouter ( ) const

inlineinherited

Get PMT router.

Returns: PMT router

Definition at line 68 of file JPMTRouter.hh.

    {
      return static_cast<const JPMTRouter&>(*this);
    }

◆ getAddress()

const JPMTAddress & JDETECTOR::JPMTRouter::getAddress ( const JObjectID & id ) const

inlineinherited

Get address of PMT.

Parameters

id	PMT identifier

Returns: address

Definition at line 80 of file JPMTRouter.hh.

    {
      return router.get(id.getID());
    }

◆ getPMT() [1/2]

const JPMT & JDETECTOR::JPMTRouter::getPMT ( const JPMTAddress & address ) const

inlineinherited

Get PMT.

Parameters

address PMT address

Returns: PMT

Definition at line 92 of file JPMTRouter.hh.

    {
      return getReference().getPMT(address);
    }

◆ getPMT() [2/2]

const JPMT & JDETECTOR::JPMTRouter::getPMT ( const JObjectID & id ) const

inlineinherited

Get PMT.

Parameters

id	PMT identifier

Returns: PMT

Definition at line 104 of file JPMTRouter.hh.

    {
      return getReference().getPMT(this->getAddress(id));
    }

◆ hasPMT()

bool JDETECTOR::JPMTRouter::hasPMT ( const JObjectID & id ) const

inlineinherited

Has PMT.

Parameters

id	PMT identifier

Returns: true if PMT present; else false

Definition at line 116 of file JPMTRouter.hh.

    {
      return router.has(id.getID());
    }

◆ getIdentifier() [1/2]

JPMTIdentifier JDETECTOR::JPMTRouter::getIdentifier ( const JPMTAddress & address ) const

inlineinherited

Get identifier of PMT.

Parameters

address PMT address

Returns: address

Definition at line 128 of file JPMTRouter.hh.

    {
      return JPMTIdentifier(getModule(address), address.second);
    }

◆ getIdentifier() [2/2]

JPMTIdentifier JDETECTOR::JPMTRouter::getIdentifier ( const JObjectID & id ) const

inlineinherited

Get identifier of PMT.

Parameters

id	PMT identifier

Returns: address

Definition at line 140 of file JPMTRouter.hh.

    {
      return getIdentifier(this->getAddress(id));
    }

◆ getModule()

const JModule & JDETECTOR::JPMTRouter::getModule ( const JModuleAddress & address ) const

inlineinherited

Get module.

Parameters

address module address

Returns: module

Definition at line 152 of file JPMTRouter.hh.

    {
      return getReference().getModule(address);
    }

◆ getParentModule()

const JModule & JDETECTOR::JPMTRouter::getParentModule ( const JObjectID & id ) const

inlineinherited

Get parent module.

Parameters

id	PMT identifier

Returns: module

Definition at line 164 of file JPMTRouter.hh.

    {
      return getModule(this->getAddress(id));
    }

◆ getParentModuleID()

int JDETECTOR::JPMTRouter::getParentModuleID ( const JObjectID & id ) const

inlineinherited

Get parent module identifier.

Parameters

id	PMT identifier

Returns: module identifier

Definition at line 176 of file JPMTRouter.hh.

    {
      return getParentModule(id).getID();
    }

◆ getPMTChannel() [1/2]

JPMTChannel JDETECTOR::JPMTRouter::getPMTChannel ( const JPMTAddress & address ) const

inlineinherited

Get PMT channel.

Parameters

address PMT address

Returns: PMT channel

Definition at line 188 of file JPMTRouter.hh.

    {
      return JPMTChannel(getModule(address).getLocation(), address.second);
    }

◆ getPMTChannel() [2/2]

JPMTChannel JDETECTOR::JPMTRouter::getPMTChannel ( const JObjectID & id ) const

inlineinherited

Get PMT channel.

Parameters

id	PMT identifier

Returns: PMT channel

Definition at line 200 of file JPMTRouter.hh.

    {
      return getPMTChannel(getAddress(id));
    }

◆ getUTMPosition()

JUTMPosition JDETECTOR::JPMTRouter::getUTMPosition ( const JObjectID & id ) const

inlineinherited

Get UTM position of given PMT identifier.

Parameters

id	PMT identifier

Returns: UTM position

Definition at line 212 of file JPMTRouter.hh.

    {
      return JUTMPosition(getPMT(id).getPosition() + getReference().getPosition());
    }

◆ getReference() [1/2]

template<class JClass_t >

const JClass_t & JLANG::JReference< JClass_t >::getReference ( ) const

inlineinherited

Get reference to object.

Returns: reference to object

Definition at line 38 of file JReference.hh.

    {
      return __object;
    }

◆ getReference() [2/2]

template<class JClass_t >

JClass_t & JLANG::JReference< JClass_t >::getReference ( )

inlineinherited

Get reference to object.

Returns: reference to object

Definition at line 49 of file JReference.hh.

    {
      return __object;
    }

◆ is_valid()

template<class JClass_t >

bool JLANG::JReference< JClass_t >::is_valid ( ) const

inlineinherited

Check validity of reference.

Returns: true

Definition at line 60 of file JReference.hh.

    {
      return true;
    }

◆ operator->() [1/2]

template<class JClass_t >

const JClass_t * JLANG::JReference< JClass_t >::operator-> ( ) const

inlineinherited

Smart pointer.

Returns: pointer to object

Definition at line 71 of file JReference.hh.

    {
      return &__object;
    }

◆ operator->() [2/2]

template<class JClass_t >

JClass_t * JLANG::JReference< JClass_t >::operator-> ( )

inlineinherited

Smart pointer.

Returns: pointer to object

Definition at line 82 of file JReference.hh.

    {
      return &__object;
    }

◆ operator*() [1/2]

template<class JClass_t >

const JClass_t & JLANG::JReference< JClass_t >::operator* ( ) const

inlineinherited

Dereference operator.

Returns: reference to object

Definition at line 93 of file JReference.hh.

    {
      return __object;
    }

◆ operator*() [2/2]

template<class JClass_t >

JClass_t & JLANG::JReference< JClass_t >::operator* ( )

inlineinherited

Dereference operator.

Returns: reference to object

Definition at line 104 of file JReference.hh.

    {
      return __object;
    }

◆ hasCLB()

virtual bool JDETECTOR::JCLBSimulator::hasCLB ( const JModuleIdentifier & id ) const

inlinevirtualinherited

Check if CLB exist.

Parameters

id	module identifier

Returns: true

Reimplemented in JTRIGGER::JCLBRunByRunSimulator.

Definition at line 67 of file JCLBSimulator.hh.

    {
      return true;
    }

Member Data Documentation

◆ k40Simulator

std::unique_ptr<JK40Simulator> JDETECTOR::JDetectorSimulator::k40Simulator

protected

Definition at line 256 of file JDetectorSimulator.hh.

◆ pmtSimulator

std::unique_ptr<JPMTSimulator> JDETECTOR::JDetectorSimulator::pmtSimulator

protected

Definition at line 257 of file JDetectorSimulator.hh.

◆ clbSimulator

std::unique_ptr<JCLBSimulator> JDETECTOR::JDetectorSimulator::clbSimulator

protected

Definition at line 258 of file JDetectorSimulator.hh.

◆ router

JTOOLS::JRouter<JPMTAddress> JDETECTOR::JPMTRouter::router

privateinherited

Definition at line 218 of file JPMTRouter.hh.

◆ __object

template<class JClass_t >

JClass_t& JLANG::JReference< JClass_t >::__object

protectedinherited

Definition at line 110 of file JReference.hh.

The documentation for this class was generated from the following file:

JDetectorSimulator.hh

Public Types

Public Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ JReference_t

◆ const_iterator

Constructor & Destructor Documentation

◆ JDetectorSimulator() [1/2]

◆ JDetectorSimulator() [2/2]

Member Function Documentation

◆ operator=()

◆ hasK40Simulator()

◆ hasPMTSimulator()

◆ hasCLBSimulator()

◆ getK40Simulator()

◆ getPMTSimulator()

◆ getCLBSimulator()

◆ reset() [1/3]

◆ reset() [2/3]

◆ reset() [3/3]

◆ generateHits()

◆ processHits()

◆ processData()

◆ operator()()

◆ getPMTRouter()

◆ getAddress()

◆ getPMT() [1/2]

◆ getPMT() [2/2]

◆ hasPMT()

◆ getIdentifier() [1/2]

◆ getIdentifier() [2/2]

◆ getModule()

◆ getParentModule()

◆ getParentModuleID()

◆ getPMTChannel() [1/2]

◆ getPMTChannel() [2/2]

◆ getUTMPosition()

◆ getReference() [1/2]

◆ getReference() [2/2]

◆ is_valid()

◆ operator->() [1/2]

◆ operator->() [2/2]

◆ operator*() [1/2]

◆ operator*() [2/2]

◆ hasCLB()

Member Data Documentation

◆ k40Simulator

◆ pmtSimulator

◆ clbSimulator

◆ router

◆ __object
