JACOUSTICS::JMatch1D Class Reference

1D match criterion for acoustic signals. More...

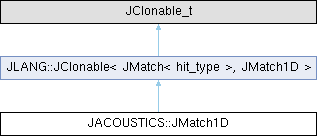

Inheritance diagram for JACOUSTICS::JMatch1D:

Public Types
typedef JClonable< JClonable_t >::clone_type	clone_type

Public Member Functions
	JMatch1D (const double V, const double Rmax_m, const double Zmax_m, const double Tmax_s)
	Constructor.
virtual bool	operator() (const hit_type &first, const hit_type &second) const override
	Match operator.
virtual clone_type	clone () const override
	Get clone of this object.

Private Attributes
const double	V
const double	Rmax_m
const double	Zmax_m
const double	Tmax_s

Detailed Description

1D match criterion for acoustic signals.

Definition at line 141 of file JBillabong.cc.

Member Typedef Documentation

clone_type

template<class JClonable_t , class JDerived_t >

typedef JClonable<JClonable_t>::clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone_type

inherited

Definition at line 61 of file JClonable.hh.

Constructor & Destructor Documentation

JMatch1D()

JACOUSTICS::JMatch1D::JMatch1D ( const double V, const double Rmax_m, const double Zmax_m, const double Tmax_s )

inline

Constructor.

Parameters

V	sound velocity [m/s]
Rmax_m	maximal radial distance [m]
Zmax_m	maximal vertical distance [m]
Tmax_s	maximal extra time [s]

Definition at line 153 of file JBillabong.cc.

                                                                                            :
      V(V),
      Rmax_m(Rmax_m),
      Zmax_m(Zmax_m),
      Tmax_s(Tmax_s)
    {}

Member Function Documentation

operator()()

virtual bool JACOUSTICS::JMatch1D::operator() ( const hit_type & first, const hit_type & second ) const

inlineoverridevirtual

Match operator.

Parameters

first	hit
second	hit

Returns

match result

Definition at line 168 of file JBillabong.cc.

    {
      /*
        const double x = first.getX() - second.getX();
        const double y = first.getY() - second.getY();
        const double z = first.getZ() - second.getZ();

        if (fabs(z) <= Zmax_m) {

        const double R = sqrt(x*x + y*y);

        if (R <= Rmax_m) {
        return fabs(first.getToA() - second.getToA())  <=  sqrt(R*R + z*z) / V  +  Tmax_s;
        }
        }

        return false;
      */
      return fabs(first.getZ() - second.getZ()) <= Zmax_m;
    }

clone()

template<class JClonable_t , class JDerived_t >

virtual clone_type JLANG::JClonable< JClonable_t, JDerived_t >::clone ( ) const

inlineoverridevirtualinherited

Get clone of this object.

Returns

pointer to newly created object

Reimplemented in JLANG::JClonable< JMatch< hit_type > >, JLANG::JClonable< JMatch< hit_type >, JMatch1D >, JLANG::JClonable< JMatch< hit_type >, JMatch3D >, JLANG::JClonable< JMatch< JTRIGGER::JHitR1 > >, JLANG::JClonable< JMatch< JTRIGGER::JHitR1 >, JMatch3G< JTRIGGER::JHitR1 > >, JPHYSICS::JPDFTransformer_t< JArgument_t >, JPHYSICS::JPD0Transformer_t< JArgument_t >, JPHYSICS::JPDGTransformer_t< JArgument_t >, JPHYSICS::JPDFTransformer< 2, JArgument_t >, JPHYSICS::JPDFTransformer< 3, JArgument_t >, JPHYSICS::JPDFTransformer< 4, JArgument_t >, JPHYSICS::JPDFTransformer< 5, JArgument_t >, and JTOOLS::JMultiMapTransformer< N, JArgument_t >::JMultiMapDefaultTransformer.

Definition at line 69 of file JClonable.hh.

    {
      return new JDerived_t(static_cast<const JDerived_t&>(*this));
    }

Member Data Documentation

V

const double JACOUSTICS::JMatch1D::V

private

Definition at line 190 of file JBillabong.cc.

Rmax_m

const double JACOUSTICS::JMatch1D::Rmax_m

private

Definition at line 191 of file JBillabong.cc.

Zmax_m

const double JACOUSTICS::JMatch1D::Zmax_m

private

Definition at line 192 of file JBillabong.cc.

Tmax_s

const double JACOUSTICS::JMatch1D::Tmax_s

private

Definition at line 193 of file JBillabong.cc.

---

The documentation for this class was generated from the following file:

• JBillabong.cc
