CRM_TimeSlice Class Reference

CRM time slices. More...

#include <TimeSlice.hh>

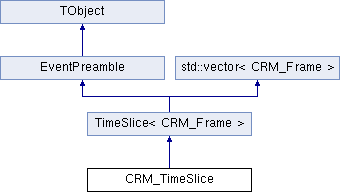

Inheritance diagram for CRM_TimeSlice:

Public Types
typedef CRM_Frame	frame_type
	item type definition
typedef CRM_Frame	frame_type
	item type definition
typedef frame_type::item_type	item_type
	item sub-type definition
typedef frame_type::item_type	item_type
	item sub-type definition

Public Member Functions
	CRM_TimeSlice ()
	Default constructor.
	ClassDef (CRM_TimeSlice, 2)
	ROOT class definition.
	CRM_TimeSlice ()
	Default constructor.
	ClassDef (CRM_TimeSlice, 2)
	ROOT class definition.
TimeSlice< CRM_Frame > &	operator+= (const TimeSlice< CRM_Frame > &object)
	operator +=
TimeSlice< CRM_Frame > &	operator+= (const TimeSlice< CRM_Frame > &object)
	operator +=
	ClassDef (TimeSlice, 2)
	ROOT class definition.
	ClassDef (EventPreamble, 2)

Public Attributes
unsigned short	frameTarget
	Unique code representing the shore station for this frame.
unsigned int	frameTime1
	Frame 'time stamp' in units of 50ns (MSW)
unsigned int	frameTime2
	Frame 'time stamp' in units of 50ns (LSW)
unsigned int	frameIndex
	Number of frames since start of the run.
unsigned int	runNumber
	Run-number as given by the RunControl.

Detailed Description

CRM time slices.

Definition at line 519 of file build/antares-dataformat/TimeSlice.hh.

Member Typedef Documentation

frame_type [1/2]

typedef CRM_Frame TimeSlice< CRM_Frame >::frame_type

inherited

item type definition

Definition at line 401 of file build/antares-dataformat/TimeSlice.hh.

frame_type [2/2]

typedef CRM_Frame TimeSlice< CRM_Frame >::frame_type

inherited

item type definition

Definition at line 401 of file TimeSlice.hh.

item_type [1/2]

typedef frame_type::item_type TimeSlice< CRM_Frame >::item_type

inherited

item sub-type definition

Definition at line 402 of file build/antares-dataformat/TimeSlice.hh.

item_type [2/2]

typedef frame_type::item_type TimeSlice< CRM_Frame >::item_type

inherited

item sub-type definition

Definition at line 402 of file TimeSlice.hh.

Constructor & Destructor Documentation

CRM_TimeSlice() [1/2]

CRM_TimeSlice::CRM_TimeSlice ( )

inline

Default constructor.

Definition at line 526 of file build/antares-dataformat/TimeSlice.hh.

: TimeSlice<CRM_Frame>() {}

CRM_TimeSlice() [2/2]

CRM_TimeSlice::CRM_TimeSlice ( )

inline

Default constructor.

Definition at line 526 of file TimeSlice.hh.

: TimeSlice<CRM_Frame>() {}

Member Function Documentation

ClassDef() [1/4]

CRM_TimeSlice::ClassDef	(	CRM_TimeSlice	,
		2	)

ROOT class definition.

ClassDef() [2/4]

CRM_TimeSlice::ClassDef	(	CRM_TimeSlice	,
		2	)

ROOT class definition.

operator+=() [1/2]

TimeSlice< CRM_Frame > & TimeSlice< CRM_Frame >::operator+= ( const TimeSlice< CRM_Frame > & object )

inlineinherited

operator +=

Parameters

object

time slice

Returns

this time slice

Definition at line 446 of file build/antares-dataformat/TimeSlice.hh.

operator+=() [2/2]

TimeSlice< CRM_Frame > & TimeSlice< CRM_Frame >::operator+= ( const TimeSlice< CRM_Frame > & object )

inlineinherited

operator +=

Parameters

object

time slice

Returns

this time slice

Definition at line 446 of file TimeSlice.hh.

ClassDef() [3/4]

TimeSlice< CRM_Frame >::ClassDef ( TimeSlice< CRM_Frame > , 2  )

inherited

ROOT class definition.

ClassDef() [4/4]

EventPreamble::ClassDef ( EventPreamble , 2  )

inherited

Member Data Documentation

frameTarget

unsigned short EventPreamble::frameTarget

inherited

Unique code representing the shore station for this frame.

Definition at line 26 of file build/antares-dataformat/EventPreamble.hh.

frameTime1

unsigned int EventPreamble::frameTime1

inherited

Frame 'time stamp' in units of 50ns (MSW)

Definition at line 29 of file build/antares-dataformat/EventPreamble.hh.

frameTime2

unsigned int EventPreamble::frameTime2

inherited

Frame 'time stamp' in units of 50ns (LSW)

Definition at line 31 of file build/antares-dataformat/EventPreamble.hh.

frameIndex

unsigned int EventPreamble::frameIndex

inherited

Number of frames since start of the run.

Definition at line 34 of file build/antares-dataformat/EventPreamble.hh.

runNumber

unsigned int EventPreamble::runNumber

inherited

Run-number as given by the RunControl.

Definition at line 37 of file build/antares-dataformat/EventPreamble.hh.

---

The documentation for this class was generated from the following files:

• build/antares-dataformat/TimeSlice.hh
• TimeSlice.hh
